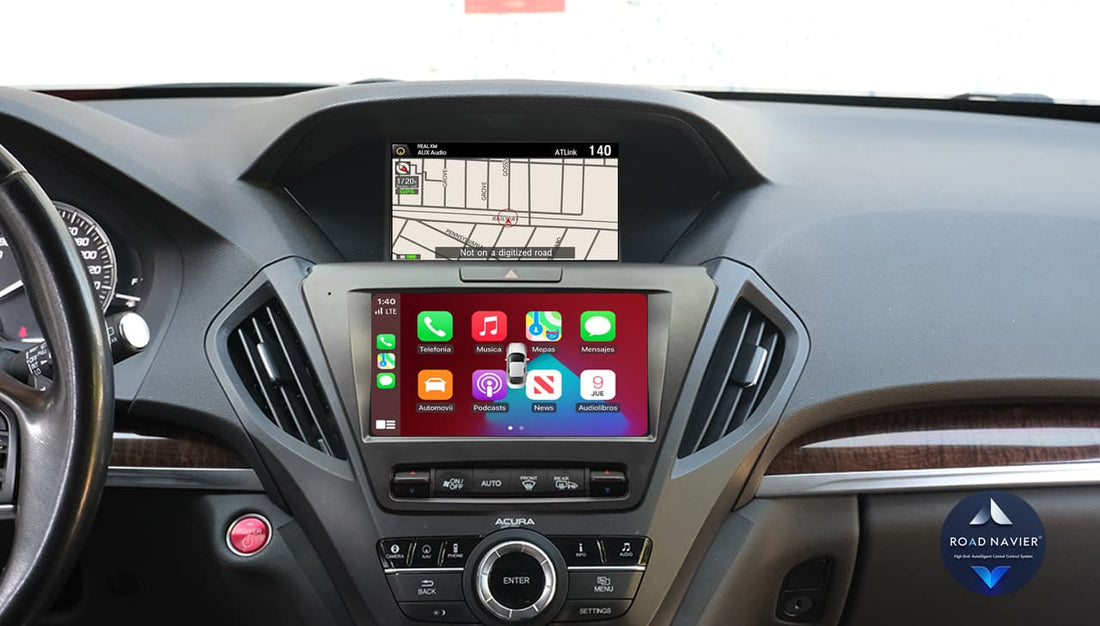

Roadnavier 8-Inch OEM-Style Android Screen — fitted in a 2014–2020 Acura MDX
How to Add Wireless CarPlay, Android Auto & 360° Camera to Your 2014–2020 Acura MDX — Without Changing the Dashboard
The OEM-fit 8-inch Android screen upgrade that gives your third-gen MDX modern connectivity, navigation, and surround-view parking — while keeping every factory function intact.
The Roadnavier 8-Inch OEM-Style Android Screen for the 2014–2020 Acura MDX (YD3) is a direct-fit replacement for the factory lower display. It solves two persistent owner pain points — the anti-theft radio code lockout that plagues every battery disconnect, and the poor call quality, navigation freezes, and distorted audio that owners experience with cheap CarPlay retrofit modules. The Roadnavier unit replaces the entire screen with a modern Android computer: wireless Apple CarPlay, Android Auto, built-in GPS, Bluetooth 5.0, and built-in 360° panoramic surround-view software — all without altering the dashboard or losing any factory functions. Priced at $699, it is the only 8-inch OEM-fit Android screen available for this generation of MDX.
📺 Watch the full installation walkthrough for the 2014–2020 Acura MDX:
The Problem: Your MDX Drives Like 2026 but Navigates Like 2014
The third-generation Acura MDX is one of the most reliable luxury SUVs on the road. A 290-hp V6, Super Handling All-Wheel Drive, three rows of seating, and a cabin that still looks premium a decade later. Owners love their MDX — which is exactly why they keep them for 100,000+ miles.
But the infotainment system hasn't aged nearly as well as the drivetrain. If you own a 2014–2017 MDX, you have no Apple CarPlay at all — Acura didn't add it until 2018, and even then only as a wired-only implementation controlled through the rotary knob, which forum owners routinely describe as buggy, freezing, and disconnecting mid-drive. The factory navigation relies on a hard-drive map database that stopped receiving updates years ago. There's no Android Auto support on any model year. And the backup camera resolution looks like it belongs in 2008.
Pain Point #1: The Radio Code Lockout Nightmare
Every MDX owner knows this scenario: you disconnect the battery for routine maintenance, and the factory radio locks you out with an anti-theft code. Acura's system requires you to dig through your owner's manual for a card with the code printed in the lower right corner — and if you bought the car used, that card might be missing. You're left calling the dealer, visiting in person with proof of ownership, or hunting for a sticker in the glove box, door jamb, or trunk. It's a 20-year-old security design that punishes the owner more than any thief.
With the Roadnavier Android screen, this problem disappears entirely. The unit runs its own Android operating system — there is no radio code lockout. Disconnect the battery, swap a fuse, or do any maintenance you want. The screen powers back on and picks up right where you left off.
Pain Point #2: Cheap CarPlay Modules That Don't Actually Work
Many MDX owners have tried the $200–$400 CarPlay retrofit modules sold on Amazon and eBay as a quick fix. The promise sounds great: plug in a box, keep your factory screen, and get CarPlay. The reality is often very different.
"I have a problem with the CarPlay I bought — everything is connected but it doesn't work smoothly. I can't make a phone call because it interrupts a lot. I can't update it because it has no Internet connection. Apple navigation doesn't work well, it jams. The most important problem is that the sound is distorted and interrupts calls."
This is not an isolated case. The core issue is that these modules piggyback on the factory screen's aging hardware and limited processing power. They're asking a 2014-era display processor to run modern CarPlay software — and it can't keep up. The result: distorted audio, dropped phone calls, navigation freezes, and no ability to update the firmware because the module has no independent WiFi connection.
The Roadnavier approach is fundamentally different. Instead of hacking CarPlay onto old hardware, you replace the entire screen with a modern Android computer — Octa-Core processor, 4GB RAM, 64GB storage, dual-band WiFi, and its own Bluetooth 5.0 stack. CarPlay runs smoothly because it's running on hardware designed for it.
Your Options: CarPlay Module vs. Full Screen Replacement
| CarPlay Retrofit Module | Roadnavier 8" OEM Android Screen | |
|---|---|---|
| What it does | Adds CarPlay to factory screen | Replaces factory screen with full Android system |
| Screen upgrade | No — keeps old display | Yes — new 1280×720 HD IPS touchscreen |
| Wireless CarPlay | Varies (some wired only) | Yes — wireless CarPlay & Android Auto |
| Call quality | Often distorted, drops calls | Clean — independent BT 5.0 stack |
| OTA updates | Usually no (no WiFi) | Yes — built-in dual-band WiFi |
| Full Android apps | No | Yes — YouTube, Spotify, Waze, Netflix, etc. |
| 360° surround view | No | Built-in (cameras sold separately) |
| GPS navigation | Phone-only via CarPlay | Built-in online & offline GPS + CarPlay |
| Radio code lockout | Still affected (factory radio) | No lockout — independent Android OS |
| Factory functions | Retained | Retained (steering wheel, A/C, backup cam) |
| Typical price | $300–$500 | $699 |
CarPlay retrofit modules are the cheaper option, but they leave you with the same aging factory screen, the same radio code lockout headaches, and — as many owners discover too late — call quality and stability problems that make the upgrade feel like a downgrade. For $200 more, the Roadnavier gives you an entirely new computing platform with none of these issues.
📺 See the Roadnavier screen running live in a 2014–2020 Acura MDX — wireless CarPlay, Android Auto, and full app demo:
The Solution: Roadnavier 8-Inch OEM-Fit Android Screen
This is not a generic 9-inch Android unit with a universal bracket jammed into your dash. The Roadnavier 8-inch screen is purpose-built for the 2014–2020 Acura MDX dashboard cutout — it drops into the same opening where the factory lower screen sits, with no cutting, no trimming, and no visible gaps. The OEM-style fitment is what separates this from every other aftermarket head unit on the market for this car.
Tesla-style vertical screens and oversized 9–12 inch units require dashboard modification, which is irreversible and can affect resale value. The Roadnavier 8-inch screen is fully reversible — you can reinstall the factory unit at any time if you sell the car or change your mind.
Under the hood, you get an Octa-Core processor with 4GB RAM and 64GB storage, wireless CarPlay and Android Auto, dual-band WiFi, Bluetooth 5.0, and built-in 360° panoramic surround-view software. Audio output routes through AUX to your factory amplifier, so your original ELS premium speakers continue to handle the sound.
📺 Watch the sound setup walkthrough for this exact unit:
Installation: Plug-and-Play in Under 90 Minutes
📺 Follow along with our step-by-step install video — covering everything from panel removal to final audio configuration:
Remove the Factory Screen
Use plastic trim removal tools to pop off the dashboard panels surrounding the factory 8-inch display. Disconnect the wiring harness from the back of the OEM unit and slide it out. No screws on the screen itself — it's held by clips and the trim frame.
Connect the Roadnavier Harness
Plug the vehicle-specific Roadnavier wiring harness into the factory connector. This is a direct plug-and-play connection — no wire cutting, splicing, or soldering. Connect the GPS antenna and route it behind the dashboard for clean reception.
Mount the New Screen
Slide the Roadnavier 8-inch unit into the dashboard opening. Secure with the included mounting hardware and snap the trim panels back into place.
Configure Audio & Test
Set the audio output to AUX from your original Acura system settings — this routes sound through your factory amplifier and ELS speakers. Power on, pair your phone via wireless CarPlay, and verify that the backup camera, steering wheel controls, and A/C display all function correctly.
Most owners with basic DIY skills complete the installation in 60–90 minutes. If you'd rather not do it yourself, any local car stereo shop familiar with Acura vehicles can handle it in about an hour. The plug-and-play harness means no specialized tools or knowledge beyond basic panel removal.
Troubleshooting: Common Questions After Installation
The most common post-install issue. Audio on the Roadnavier unit routes via AUX — you need to change the audio source to AUX in your original Acura system settings. Watch our sound setup video for a step-by-step walkthrough of this exact setting.
Make sure both Bluetooth and WiFi are enabled on the head unit. On your iPhone, go to Settings → General → CarPlay → select the Roadnavier unit. The first pairing requires a one-time manual setup; after that, it connects automatically every time you start the car.
The Roadnavier unit is compatible with the factory backup camera. If the image doesn't appear when you shift into reverse, check the camera trigger wire connection on the harness — it may have come loose during installation. A quick re-seat usually resolves it.
Compatibility: Does It Fit My MDX?
This unit fits 2014–2020 Acura MDX models across all trims (Base, Technology, Advance) — but there's one critical check. If your center console has a built-in DVD/CD loader (a disc slot visible below the screen area), this unit is NOT compatible. Compare your dashboard against the images below:
Type A (top): DVD loader present — NOT compatible. Type B (bottom): No DVD loader — COMPATIBLE.
Not sure which type you have? Send a photo of your center console to Roadnavier via WhatsApp at +86 180 3308 4278 and we'll confirm within 24 hours — free of charge.
FAQ
Yes. This unit fits 2014–2020 MDX models across all trim levels — Base, Technology, and Advance — as long as your center console does not have a built-in DVD/CD loader.
The Technology Package typically includes the dual-screen navigation setup. The Roadnavier replaces the lower 8-inch display while the upper information screen continues to function independently.
Yes. The Roadnavier unit retains all factory functions. Your original backup camera feed displays on the new screen when you shift into reverse. Steering wheel audio controls (volume, track skip, source) work as expected. The A/C display panel remains fully independent.
Yes — and this is a major differentiator. The Roadnavier 8-inch unit has built-in 360° panoramic surround-view software that stitches feeds from four AHD cameras into a real-time bird's-eye view. Most competing head units do not offer this feature.
The camera set is sold separately. You can pick up the Roadnavier 1080P AHD 360° Camera Kit here.
Wireless CarPlay and wireless Android Auto are built into the unit — no separate adapter or dongle needed. Pair once via Bluetooth and WiFi; it connects automatically every time you start the car.
Wired USB connection is also supported if you prefer faster response or want to charge your phone simultaneously.
Audio routes from the Roadnavier unit to your factory amplifier via AUX. Your original ELS speakers and amplifier handle the sound reproduction — the Roadnavier simply provides the source signal. The result is that you keep the full clarity and power of your factory audio while gaining access to modern streaming apps and wireless CarPlay audio.
For the initial audio setup, make sure to set the output to AUX in your Acura's original system settings. Our YouTube sound setup video walks through this step by step.
The kit includes: the 8-inch Android touchscreen unit, a vehicle-specific plug-and-play wiring harness, GPS antenna, USB cable, AUX audio cable, mounting hardware, and user manual. No additional adapters or third-party harnesses are required.
Absolutely. The installation is fully reversible. The plug-and-play harness means no wires are cut — you can reinstall the original factory screen at any time. This is especially valuable if you plan to sell the car and want to return it to stock condition.
Give Your Acura MDX the Infotainment It Deserves
Wireless CarPlay, Android Auto, built-in GPS, full Android apps, and 360° panoramic surround-view support — all in a clean, OEM-style 8-inch screen. Plug-and-play. Factory functions retained. $699.
