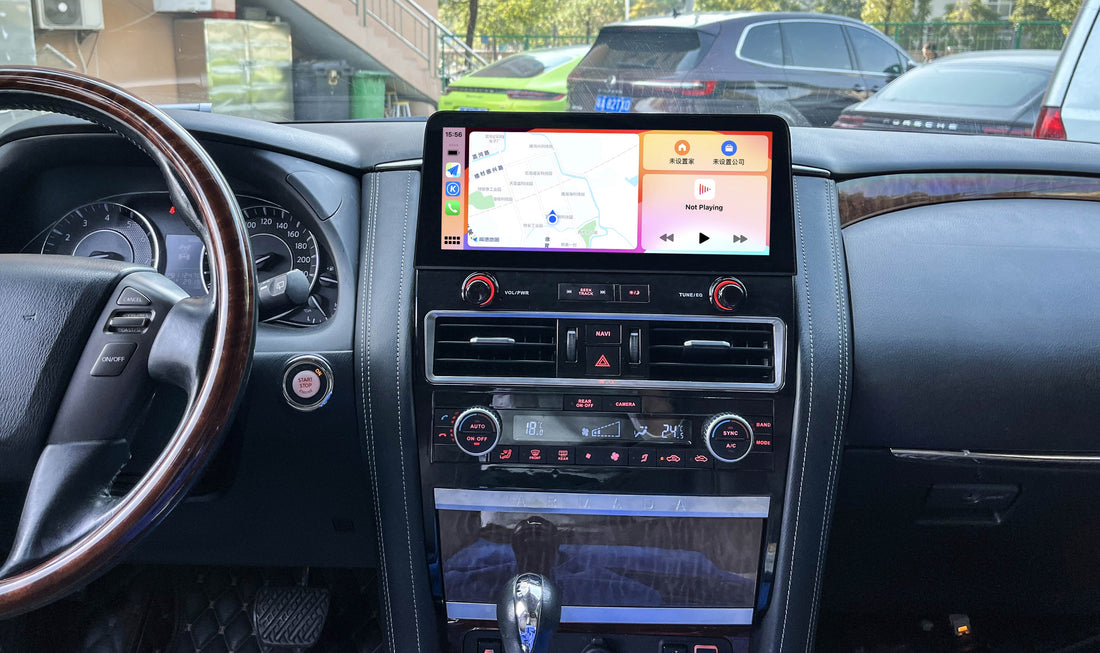

How to Install Nissan Patrol Y62 / Armada Android Navigation

Step-by-Step Guide for 2016–2018 Models (4.0L / 5.6L)

Upgrading your Nissan Patrol Y62 or Armada with the Tesla-style Android navigation system gives your interior a smart and modern look — featuring CarPlay, Android Auto, and full-screen GPS navigation.

Below are the three wiring versions based on engine type and model year. Please match your harness before installation.

⚙️ Type A — 2016 Nissan Patrol / Armada 5.6L

For vehicles with 360° camera system

Main harness components:

• CANBUS module

• OEM USB cable

• AUX in/out

• Radio antenna

• Rearview adaptor (360 camera input)

Installation Steps:

1. Disconnect your car battery.

2. Remove the air vent and center console trim with a plastic pry tool.

3. Unplug the original radio connectors.

4. Connect the new harness following the labels (CANBUS, AUX, USB, etc.).

5. Plug the 360 camera adaptor and verify display on reverse gear.

6. Test all functions: AC display, CarPlay, and GPS signal.

📸 Image: 2016 5.6L Harness Layout

🎥 Insert Video: Type A Installation Walkthrough

⚙️ Type B — 2016 Nissan Patrol / Armada 4.0L

For vehicles with 360° camera and single CAN line

Main harness components:

• Power harness

• Audio cable

• Rear 360 adaptor

• CAN line

Installation Steps:

1. Disconnect battery and remove center panel.

2. Connect main power and audio cables as shown.

3. Plug 360 adaptor into the rearview input port.

4. Retain OEM AC communication connector (white plug).

5. Test reverse camera and sound.

📸 Image: 2016 4.0L Wiring Guide

🎥 Insert Video: Type B Installation Video

⚙️ Type C — 2018 Nissan Patrol / Armada 4.0L

For facelift models with dual CAN lines (CAN1 + CAN2)

Main harness components:

• Dual CAN lines

• Power cable

• Rear 360 adaptor

• Retained AC connector

Installation Steps:

1. Plug in both CAN1 and CAN2 connectors according to the color code.

2. Connect power and 360 adaptor as labeled.

3. Keep original AC communication harness plugged into OEM port.

4. Verify CAN communication: steering wheel control and AC info.

5. Reinstall trim panels and perform full function test.

📸 Image: 2018 4.0L Wiring Guide

🎥 Insert Video: Type C Installation Video

🧩 Final Setup & Tips

• Reconnect battery.

• Set up WiFi, GPS, and CarPlay under “Settings.”

• Adjust audio EQ for Bose sound system if equipped.

• Ensure 360 camera view and AC info are synchronized.

✅ Installation completed! Enjoy your upgraded smart dashboard.
