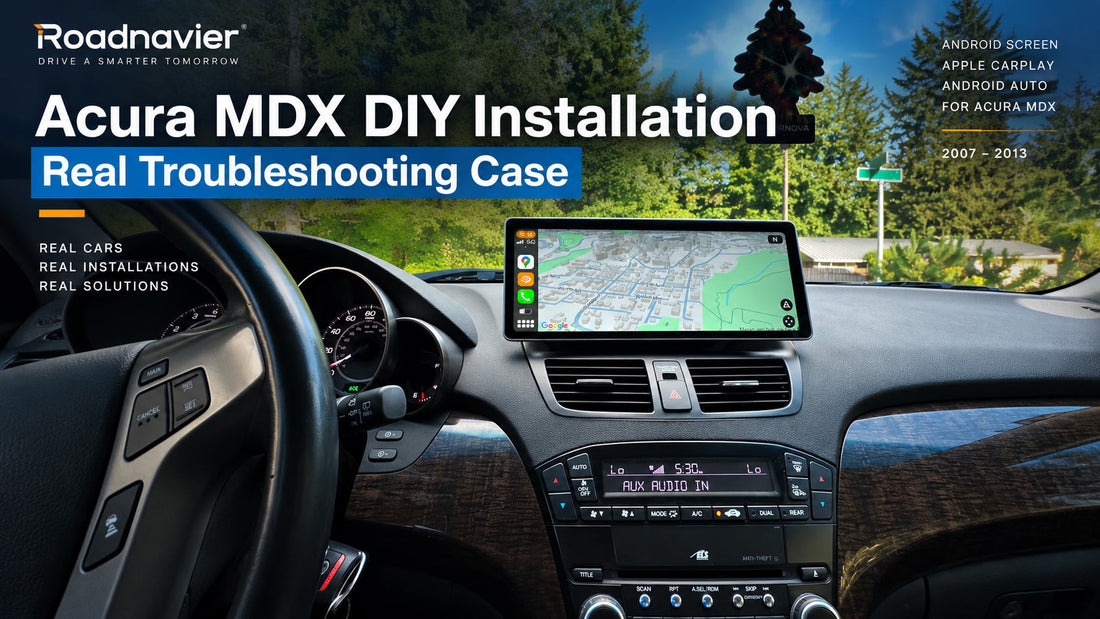

Real installation case · Acura MDX · North Carolina, USA
Installing an Android screen is sometimes straightforward. Other times, one unexpected factory-system behavior can turn a simple upgrade into hours of troubleshooting.
This is a real Roadnavier customer installation case involving an Acura MDX with the factory navigation/audio system. The owner, Thomas, previously had a GROM VLine module installed for CarPlay, but wanted a larger touchscreen and a more modern interface.
He originally planned to have the upgrade professionally installed. After reviewing the installation documentation we prepared for him, however, he decided:
“I am going to try to install the unit.”
What followed became one of the most useful Acura MDX troubleshooting cases we have documented.
Vehicle & Upgrade
- Vehicle: Acura MDX with factory navigation/audio system
- Location: North Carolina, USA
- Upgrade: Roadnavier 12.3-inch Android touchscreen
- Functions: Wireless Apple CarPlay, Android Auto, Bluetooth, GPS and backup camera support
- Factory audio: Retained through the original Acura audio system
- Previous retrofit: GROM VLine CarPlay module
- Installation: Owner DIY installation
View the Roadnavier Acura MDX 12.3" Android Screen
Before the Installation: The Customer Had Concerns
Thomas already had aftermarket CarPlay in his MDX through a GROM VLine module. It worked, but he did not like relying on the original display and center controller to navigate the system.
He was interested in our 12.3-inch Android screen, but his previous installer had also warned him about Chinese aftermarket systems.
So before ordering, Thomas asked the questions we think every owner should ask:
- Will the steering-wheel controls still work?
- What happens to the original radio and navigation system?
- Will the climate controls remain functional?
- How will Bluetooth calls work?
- Can a backup camera be added?
- Are the installation instructions detailed enough for a DIY installation?
Instead of simply telling him the system was “plug and play,” we prepared an installation package covering dashboard disassembly, wiring, pre-installation checks, function testing and troubleshooting.
The Android Screen Powered On — But There Was No Sound
During installation, the new screen powered up successfully. The Android interface was running and the display itself was working.
But there was a major problem:
There was no sound.
At first, this looked like a normal audio-routing problem. The Android system sends its audio into the retained factory Acura sound system, so we began checking the audio connections and factory head unit.
The Important Discovery: AUX AUDIO IN Was Missing
As the troubleshooting continued, we realized that “no sound” was not the most useful description of the problem.
The more important symptom was:
The factory AUX AUDIO IN source was not appearing normally.
This distinction matters.
If AUX is selectable but silent, the next step is to investigate the audio signal path and related connections.
If the AUX source itself is unavailable, the first priority is to verify whether the factory system is operating normally.
Stop Guessing: Restore the Factory System First
After checking the Android connections for hours, we decided to simplify the problem.
Instead of continuing to change Android settings, Thomas temporarily restored the original Acura system.
The purpose was simple:
Establish a known-good factory baseline.
If the factory radio and AUX worked with the aftermarket system disconnected, we would know that the vehicle's original audio system was still functional.
Then the Acura Security Code Appeared
Once the factory equipment was reconnected, the original Acura audio system requested its anti-theft security code.
Fortunately, this was something we had discussed before the unit was shipped. Thomas had already confirmed that he had the factory radio code available.
Initially, entering the code did not appear to work as expected. The factory unit would shut down and restart.
Eventually, Thomas was able to complete the factory radio security-code process using the volume/power control and the correct code.
Once the factory system was operating normally again, we could continue testing the AUX audio path.
The Key Evidence: “AUX AUDIO IN” Returned
Once the original Acura audio system was operating normally again, the factory display clearly showed:
AUX AUDIO IN
That was an important diagnostic result.
The factory AUX function had not permanently failed. We now had a working OEM baseline and could reconnect the Android system from a known-good starting point.
Reconnect, Test Again — Sound Restored
Thomas reconnected the Android system and tested it again.
This time the factory AUX path was available and the Android audio came through the original sound system.
“Got the sound wow.”
A few minutes later he explained what had happened on his vehicle:
“Just needed to hit volume and enter the code.”
After hours of troubleshooting, the installation was finally producing sound.
What We Learned From This Acura MDX Installation
The most useful lesson from this case is not simply “enter the security code.”
The real lesson is how to diagnose an integrated Android/factory audio system without replacing parts or changing settings blindly.
1. A Working Android Screen Does Not Mean the Entire Installation Is Working
Display, Android software, CAN integration and factory audio are different parts of the system.
A screen can boot normally while the OEM audio system is not yet in its normal operating state.
2. “No Sound” and “AUX Is Missing” Are Different Symptoms
If AUX exists but has no audio, investigate the signal path and connections.
If the factory AUX source itself is unavailable, verify the factory system state first.
That distinction changed the direction of this troubleshooting case.
3. Establish a Known-Good OEM Baseline
When troubleshooting becomes confusing, temporarily restoring the factory configuration can answer an extremely useful question:
Does the vehicle still work normally without the aftermarket system connected?
In this case, that test confirmed that the Acura factory audio and AUX system were still functional.
4. Keep the Acura Radio Security Code Before Starting
If power to the original Acura audio system is interrupted, the factory anti-theft system may request its security code.
Before beginning the installation, make sure the correct factory radio/audio security code is available.
5. Take Photos Before Disconnecting Factory Plugs
Photos of the OEM connectors provide a reliable reference when you need to restore the vehicle or compare connections during troubleshooting.
A few photos taken before disassembly can save a lot of uncertainty later.
A Six-Hour Troubleshooting Session Became a Guide for the Next Owner
Thomas spent roughly six hours working through the installation and troubleshooting that day.
He repeatedly checked connections, sent photos, restored the factory configuration, tested the OEM system and then reconnected the Android upgrade.
What made the case valuable was not that everything worked immediately.
It was that each test reduced the uncertainty until the problem could be isolated.
After the sound finally returned, Thomas wrote:
“Hopefully we can help the next poor soul.”
We agree.
A difficult installation should not only solve one customer's problem. Once the process is documented, it should make the next owner's installation easier.
A real troubleshooting case becomes documentation. Documentation becomes a troubleshooting guide. And that guide becomes part of the product.
Planning an Acura MDX Android Screen Upgrade?
If you're upgrading an Acura MDX with the factory navigation/audio system, the most important step is confirming the exact factory configuration before installation.
The Roadnavier 12.3-inch Android screen adds a modern touchscreen interface, wireless Apple CarPlay and Android Auto while retaining integration with the vehicle's original systems where supported.
Before ordering, send us:
- Your Acura MDX model year
- A clear photo of the original dashboard
- A photo of the factory display/audio configuration
- Whether the vehicle has factory navigation and ELS audio
Check the Acura MDX 12.3" Android Screen →
If you're unsure about your factory configuration, send the vehicle information and photos before ordering. We can use them to confirm the correct version and installation requirements.
