The Roadnavier Porsche Panamera GTS (970.2) Android upgrade is explicitly engineered to interface with the 2015 Porsche Panamera GTS factory PCM 3.1 navigation dashboard, preserving the OEM Bose MOST fiber-optic amplifier protocols without losing original system calibration.
Upgrading the aging PCM 3.1 factory head unit in your 2015 Porsche Panamera GTS (970.2 generation) to a modern Android head unit is one of the best ways to bring Wireless Apple CarPlay, Android Auto, and modern apps to your cockpit. However, because your Panamera GTS features a premium Bose Surround Sound System, the factory head unit communicates with the amplifier over a fiber-optic MOST (Media Oriented Systems Transport) ring. To upgrade your screen without ripping out your high-end factory sound system, a MOST fiber-optic adapter is required to pass audio from the new Android hardware to the Bose amp.
To get the absolute best sound quality, minimal noise floor (no background hiss), and full dynamic range, it helps to understand exactly how the Bose amplifier behaves once the factory PCM 3.1 is removed.
1. How the Bose Amplifier Behaves Post-PCM 3.1 Removal
When you unplug the factory PCM 3.1, the Bose amplifier loses its primary control partner. It becomes a standalone processor that relies entirely on its last-saved internal state and the stereo audio stream supplied by your new Android head unit's MOST interface. Here is exactly how the Bose amp handles specific audio modes and settings after the factory unit is gone:
- Linear Mode & Bose Surround: The Bose proprietary spatial surround processing requires multi-channel decoding commands directly from the PCM 3.1. Once the PCM is removed, the MOST fiber-optic interface feeds a high-quality, standard 2-channel (Left/Right) digital stereo signal to the amp. Consequently, the Bose amplifier defaults to its standard, flat Linear Mode. The good news? Your new Android head unit comes equipped with a powerful, built-in digital signal processor (DSP), offering comprehensive EQ, time alignment, and crossover adjustments that far exceed the capabilities of the original Porsche system.
- Bass, Treble, & Equalization: The Bose amplifier permanently locks onto the last-saved Bass and Treble hardware values programmed via the PCM 3.1 right before it was disconnected. It does not automatically reset them to zero.
- Balance & Fader: Because standard aftermarket MOST interfaces convert audio into a 2-channel (Left/Right) fiber-optic stream, the physical Fader (Front/Rear balance) within the Bose amp locks permanently at a 50:50 ratio. You will not be able to adjust front-to-rear fading using the Android screen. Left-to-right Balance, however, remains fully functional.
- Speed-Dependent Volume Control: This feature is completely deactivated. It relies on live CAN-bus speed data linked directly through the PCM 3.1 firmware. Without the factory unit, the Bose amp stops adjusting volume based on vehicle velocity.
2. Pre-Removal Checklist: The Best-Practice Setup
Before you unbolt your factory PCM 3.1, you must prep the Bose amplifier so it is locked into an optimized, neutral, and distortion-free state. Reconnect your PCM 3.1 (if already removed) and adjust the factory settings to the following parameters:
| Audio Setting | Recommended Target | Why This Matters |
|---|---|---|
| PCM Factory Volume | 70% to 80% | Crucial for Gain Staging to avoid hiss or weak sound dynamics. |
| Linear Mode | ON | Ensures a flat, uncolored frequency response from the factory amp. |
| Bose Surround | OFF | Prevents legacy surround algorithms from artifacting your new Android audio stream. |
| Bass & Treble | 0 (Centered) | Keeps hardware equalization neutral; tone is adjusted via Android DSP. |
| Balance & Fader | 0 (Centered) | Ensures equal power distribution across all doors, centers, and subs. |
| Speed-Dependent Volume | OFF | Eliminates unpredictable volume changes during driving. |
3. Deep Dive: System Gain Staging & Optical Settings
The Bose amplifier features an incredibly high input sensitivity. It does not automatically adjust its internal gain structure once the factory screen is gone—it retains the volume level threshold of the PCM 3.1 at the moment of removal.
⚠️ The Danger of 100% Volume:
If you leave the factory PCM volume at 100% before removal, you maximize the amplifier's input sensitivity. When you hook up the Android head unit, you will likely experience a loud, audible background hiss (high noise floor), and the volume will be overwhelmingly loud even at setting "1".
✔️ The Golden Solution:
By leaving the factory volume at 70% to 80%, you hit the acoustic "sweet spot"—maximizing the signal-to-noise ratio while preserving massive dynamic headroom. Once installed, calibrate the overall output via the Android Factory Settings -> Audio / Gain menu.
📹 Quick Video Walkthrough: Setting Up Your Fiber Optic Connection
To make sure your new Android screen communicates flawlessly with the Bose system over the optical fiber ring, you need to configure the head unit settings. Watch our quick technical guide below to learn how to toggle the optical connection and unlock full EQ adjustment control:
Key Takeaway from Video: Go to Settings -> Sound, locate "Fiber optic direct connection" under the Advance tab, and turn this setting OFF. Once deactivated, head back to your Equalizer (EQ) app where you can now freely tune and customize all of your sound stages!
4. Choose Your Porsche Panamera Upgrade Style
While preparing your Bose system correctly is crucial, choosing the physical dashboard styling is where the transformation really begins. For the Porsche Panamera (2010–2016), we design and offer three distinct aesthetic upgrades that seamlessly integrate with your car's physical interior layout:
- The Original Factory Look (Classic OEM Style): If you want to keep the dashboard look entirely authentic and classic while adding Wireless CarPlay, DSP, and modern GPS navigation, check out our Porsche Panamera (2011-2016) 8.4-Inch OEM-Style Head Unit.
- The Modern 18-24 Generation Wide-Screen Look: Ready for a major technological leap? This configuration replicates the modern, wide-screen cockpit look of the latest Porsche models with a stunning ultra-wide landscape display. See our Porsche Panamera (2010-2016) Wide-Screen CarPlay System.

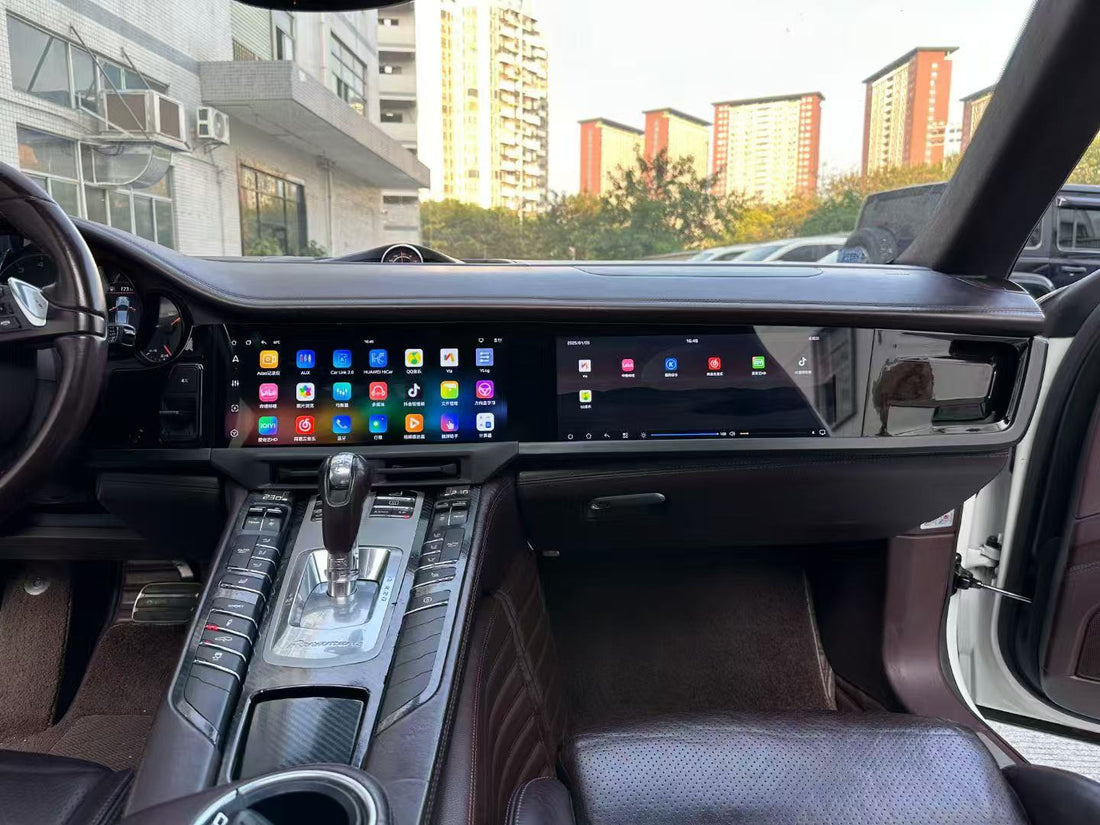

- The Next-Gen Dual Screen Experience: Our absolute latest style completely redefines the entire center console stack, bringing an immersive double-display layout to your dashboard. Explore our Porsche Panamera (2013-2017) Dual 12.3-Inch Android System.
Interested in other luxury vehicle modifications? Check out our previous comprehensive installation walkthroughs for BMW Intelligent Screen retrofits and our Land Rover Range Rover complete console digital upgrades.
