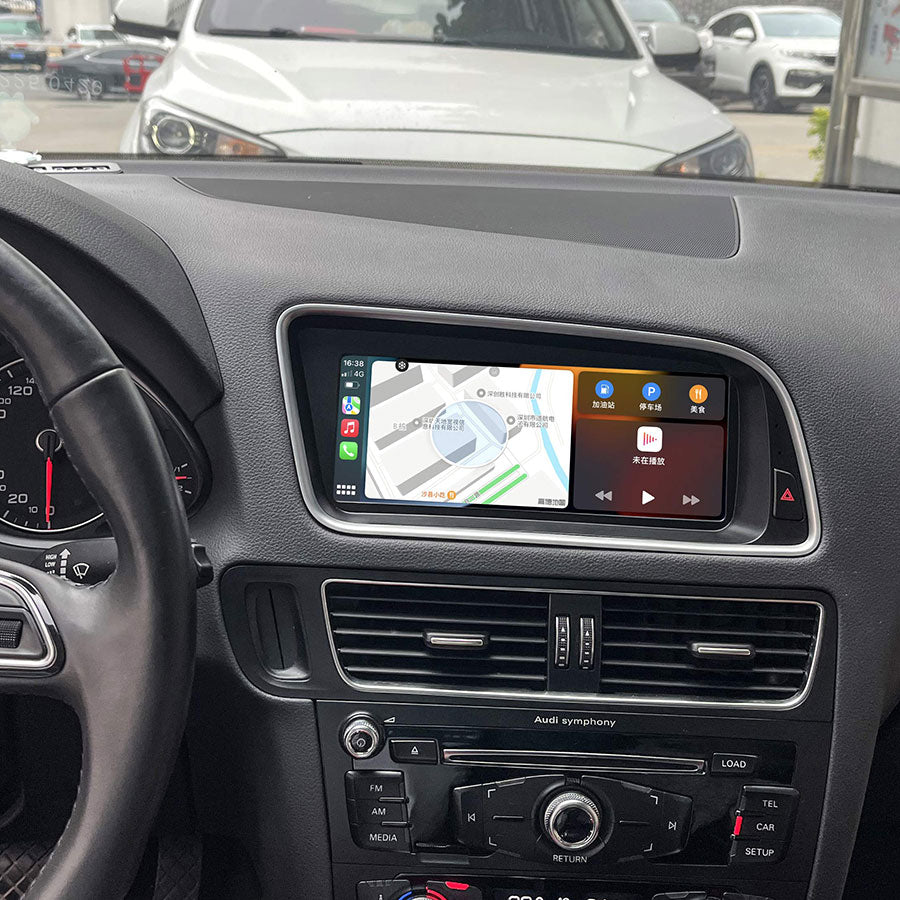

Audi Q5 (2009–2017) 8.8" HD Touchscreen Display Upgrade
Transform your Audi Q5 dashboard with seamless Wireless CarPlay, Android Auto, and modern Android OS—while maintaining 100% of your factory Audi MMI controls, original radio, and vehicle telemetry.
💡 Dual-System Coexistence
This system functions as a dual-architecture display. It does not delete or replace your factory Audi head unit. Pressing and holding the original MMI control switch toggles instantly between the factory MMI menu (Radio, Vehicle Settings, Original Rearview Camera) and the upgraded high-definition Android interface.

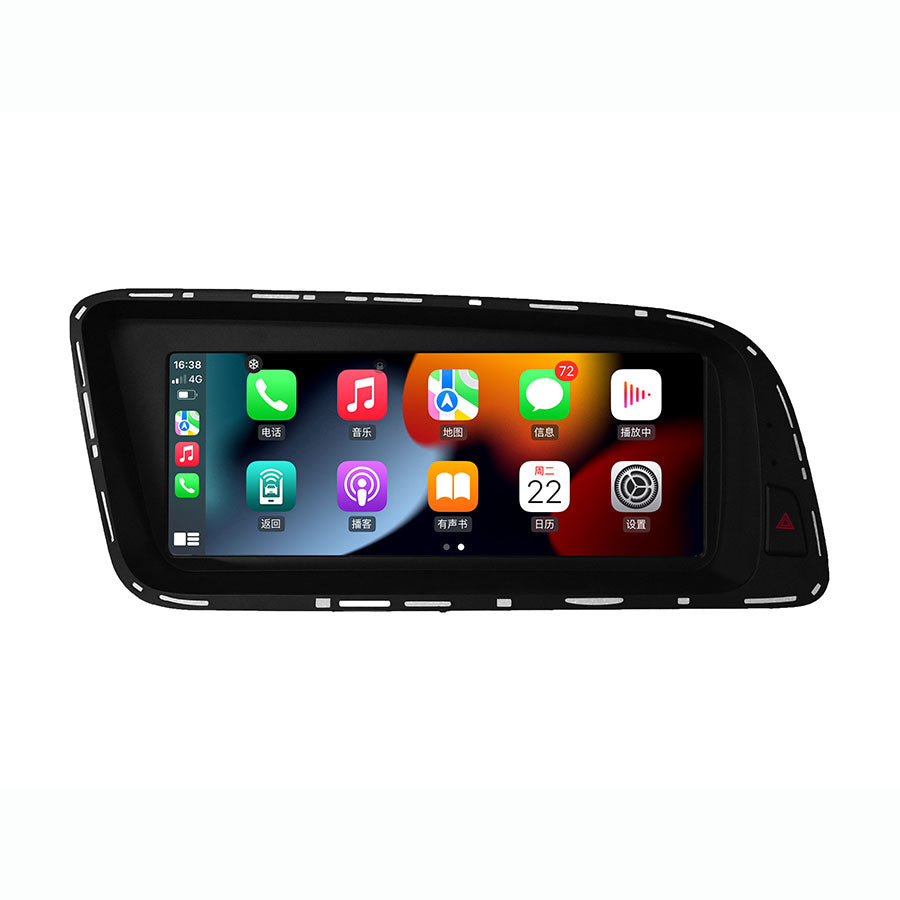

Why 8.8-Inch Factory-Fit Ergonomics?
Unlike oversize screens that protrude out from the dashboard or block air vents, the 8.8-inch display is specifically designed to drop directly into the OEM Audi Q5 dash bezel cutout. It maintains the factory proportions and aesthetic curve while replacing the low-resolution 400x240 / 800x480 factory display with a sharp, high-contrast digital IPS panel.
Seamless CANBus Integration
Decodes original steering wheel buttons, MMI central knob wheel, door status sensors, and air conditioning information overlays.
Zero Fiber-Optic Disruption
Keeps the original Audi MOST fiber-optic audio bus and amplifier intact, feeding high-fidelity audio direct through your OEM system.
⚠️ Pre-Purchase Verification Requirement
Audi Q5 vehicles between 2009 and 2017 were shipped with different infotainment hardware versions across globally distributed markets. Audio signal routing depends on your head unit type:
- MMI 3G High / MMI 3G Plus: Head unit located in dash with dual SD card slots. Audio is routed directly via factory AUX/AMI port.
- Concert / Symphony (Non-MMI): Climate controls located higher up, volume control knob directly on dash radio unit. Requires harness connector with AUX bypass.
- Note: If your vehicle does not have an active AUX or AMI port in the glovebox, activation via OBD/coding or an AMI adapter cable is required for sound output.
Core Capability Matrix
-
✓
Wireless Apple CarPlay & Wired/Wireless Android Auto: Effortlessly sync navigation apps (Google Maps, Waze, Apple Maps), music streaming (Spotify, Apple Music), and voice control (Siri, Google Assistant).
-
✓
High-Definition Anti-Glare IPS Display: Sharp capacitive touchscreen offering crisp 1280x480 resolution with clear readability under direct sunlight.
-
✓
Camera & Parking Sensor Retention: Fully compatible with factory reverse cameras, aftermarket AHD 1080p rear/front cameras, and 360-degree panoramic camera systems.
-
✓
Dual-Zone Audio Architecture: Listen to original Audi FM/CD radio while using Android GPS navigation audio prompts simultaneously.
Hardware Specifications
| Parameter | Specification Detail |
|---|---|
| Compatible Vehicle | Audi Q5 / SQ5 (8R Chassis) — Model Years 2009 to 2017 |
| Screen Diagonal & Panel | 8.8-inch Capacitive IPS Multi-Touch Screen |
| Resolution | 1280 x 480 HD Resolution Panel |
| Operating System | Android Automotive OS (Google Play Store Enabled) |
| Connectivity | Dual-Band Wi-Fi (2.4GHz / 5GHz), Bluetooth 5.0, 4G LTE SIM Slot |
| Audio Output Channel | OEM AUX Input / AMI Interface (Preserves Bang & Olufsen / Standard Sound) |
| Installation Method | 100% Plug and Play Harness — No Wire Cutting Required |
Frequently Asked Questions
Will this upgrade affect my original Audi sound quality or sound system?
Can I still use my physical MMI knob and steering wheel control buttons?
What if my car does not show an AUX option in the factory menu?
Is wire splicing or dash modification required during installation?
