Why Your Acura RDX Top Screen Goes Black After Stereo Upgrade (And How to Fix It)
A Circuit Engineering Breakdown of the Acura Base Trim 32-Pin Harness, ACC Relay Control, and Zero-Drain Power Logic
You just installed a sleek new Vertical Android Screen in your 2013–2018 Acura RDX Base Trim (with Premium Audio), turned the key, and noticed a major problem: the upper factory display screen is completely black. No clock, no climate info, and no backup camera feed.
This blackout is not a defective display unit—it is an electronic circuit routing issue unique to the Base Trim setup. In this article, we explain the engineering cause behind the upper screen blackout and how Roadnavier solved it with a dedicated 32-pin relay bypass system.

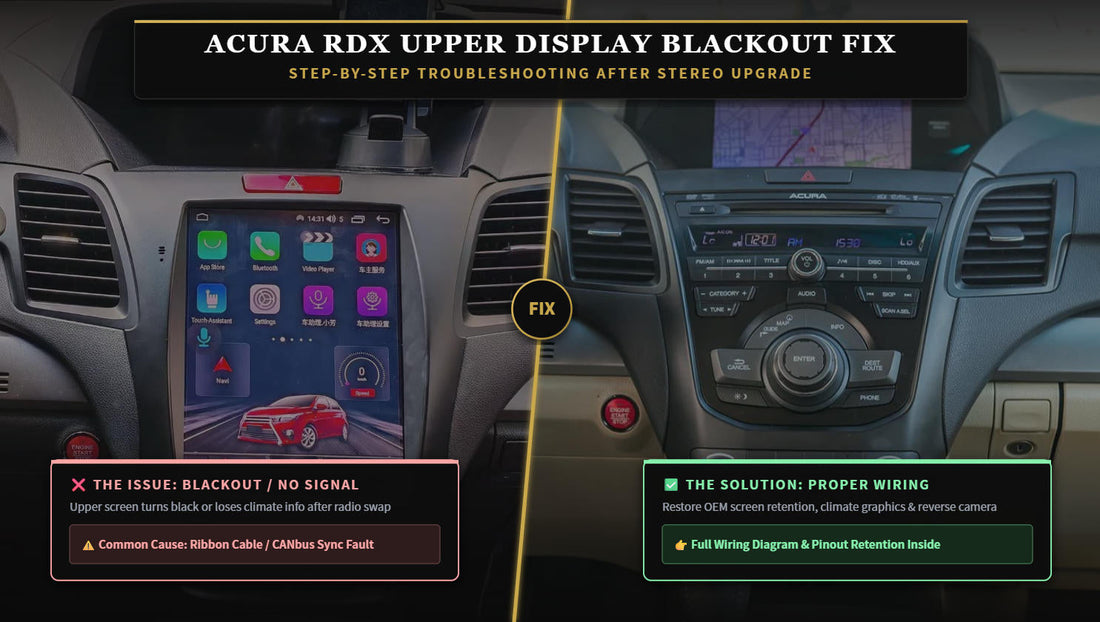

Figure 1: The upper sub-display blackout on 2013–2018 Acura RDX Base models when using generic aftermarket radio harnesses.
1. Why Does the Upper Screen Go Black on Base Trims?
In 2013–2018 Acura RDX Base models, the top sub-display does not possess an independent ignition wake-up line from the fuse box. Instead, its ignition power signal (ACC) and composite reverse camera video feed pass directly through the original CD player/radio unit via a factory 32-pin connector.
When the factory head unit is removed to make room for a new Vertical Screen, the 32-pin harness is left unplugged. Without the 12V ignition trigger signal passing through this circuit loop, the upper sub-display remains stuck in sleep mode permanently.
2. The 32-Pin Connector Circuit Architecture
To solve the blackout without splicing into original factory wires or risking parasitic battery drain, Roadnavier mapped the OEM 32-pin terminal connections:
Figure 2: Pinout mapping of the Acura 32-pin sub-display terminal connection on Base Trim models.
3. The Roadnavier Solution: Integrated Relay Harness
Improper DIY workarounds often tie the top display directly to a constant 12V BATT line, causing severe overnight battery drain. Our R&D engineering team designed a plug-and-play adapter integrated with an electronic relay control loop:
- Automated ACC Wake-Up: The electronic relay triggers only when key ignition is turned to ACC/ON, instantly powering on the upper factory screen.
- Factory Reverse Camera Retention: Correctly routes original reverse video signals straight back to the top display without signal noise.
- Zero Parasitic Battery Drain: When the vehicle is shut off, the physical switch opens completely, dropping static current draw down to 0mA.
Want to See How the Cables & Harness Connect?
Check our step-by-step DIY installation walkthrough with full real-world wiring photos.
View Step-by-Step DIY Installation Guide →Explore Related Acura RDX Technical Guides:
- Confused about dashboard trims? Check our Acura RDX Audio Trim Compatibility Guide.
- Comparing screen options? Read our 9.7" Vertical vs 12.3" Widescreen Compatibility Guide.
- Need complete schematics? Return to the Acura RDX Master Engineering Guide.
Frequently Asked Questions
Do I need to manually wire or solder a relay myself? ▼
No. When you order a Base Trim Vertical Screen kit from Roadnavier, the relay and 32-pin connectors come fully pre-wired into the plug-and-play harness bundle. You simply plug it directly into the vehicle's original 32-pin harness connector.
Does this 32-pin fix apply to 2016–2018 Tech/Advance dual-screen models? ▼
No. 2016–2018 Technology and Advance Package models use the ODMD dual-screen system with completely different dual-LVDS bus protocols and are incompatible with standard aftermarket Android replacement screens.
Are customs duties and shipping fees transparent at checkout? ▼
Yes. All applicable import duties, customs tariffs, and tax estimations are displayed dynamically at checkout or handled via tax-inclusive (DDP) shipping channels so you never face surprise charges upon delivery.
