2004-2008 Acura TL Tesla Screen Step-by-Step Installation & Wiring Guide
Complete Dashboard Disassembly, Wire Harness Mapping & Reverse Camera Installation Tutorial
Before unbolting the center stack, physically disconnect the OEM HandsFreeLink (HFL) Bluetooth module in the overhead map light console. Defective factory HFL units cause severe parasitic battery drain. The Roadnavier screen features built-in Bluetooth 5.0, making the stock module obsolete.
💡 Choose Your Acura TL Tesla Screen Upgrade Kit
Engineered plug-and-play Android Head Units for 2004–2008 Acura TL (Base & Type-S). Retains factory ELS sound system, steering wheel controls, and dual-zone climate displays.

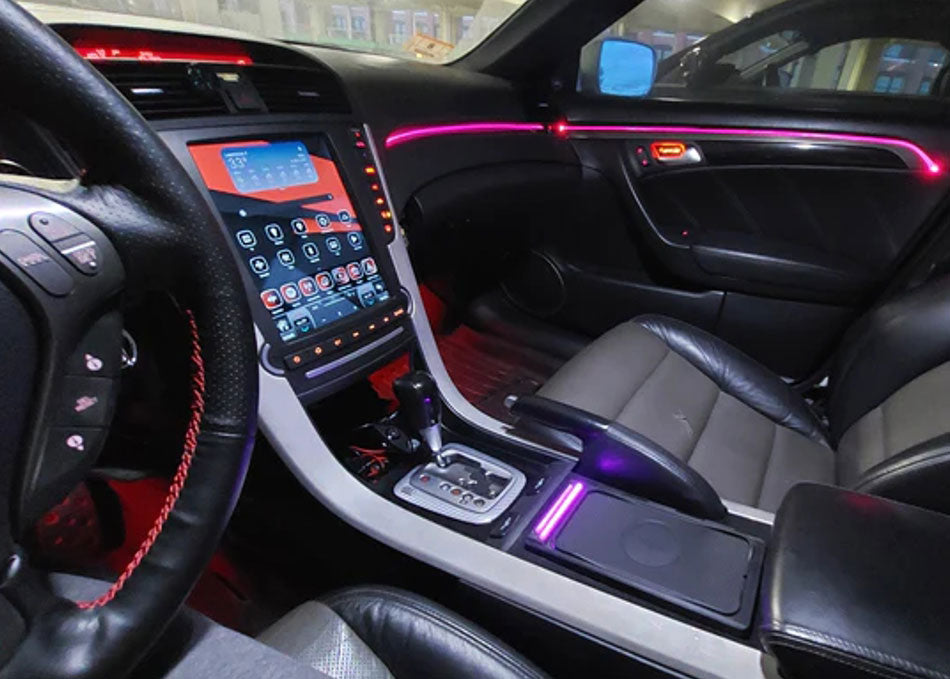

Roadnavier 9.7-Inch Screen
Sleek vertical layout preserving factory dash lines with physical AC buttons.
Roadnavier 12.1-Inch HD Screen
Maximum screen real estate with high-speed octacore processor.
Step 1: Dashboard & OEM Head Unit Removal
Watch our video teardown guide to safely remove side aluminum trim strips, unbolt the OEM center stack, and disconnect factory harnesses:
Step 2: Harness Connections & Model Revisions
The Roadnavier universal harness includes combined connections for both 2004–2006 and 2007–2008 revisions:
📅 2004–2006 Models Notes
Use the 5-pin + 14-pin adapter connections. Ensure the factory AC controller connector is securely plugged into the matching CANBus pass-through socket.
📅 2007–2008 Type-S / Base Notes
The factory Blue Plug may require a tiny plastic alignment tab notch shaved off using a razor blade for a snug latch. Do not force the plug.
Step 3: Aftermarket Backup Camera Wiring
-
Video Signal: Connect yellow RCA cable to
CAM-IN. - Camera Power ① (Red Wire): Splice to the positive (+) 12V reverse tail light wire in the trunk.
- Ground Cable ② (Black Wire): Connect to a solid metal ground bolt inside the trunk.
- Reverse Trigger Wire ③ (Red Wire): Splice directly into Pin #3 (BACK) on the main 16-pin head unit power connector.
Step 4: CAN-Bus Protocol Settings (AC & Steering Wheel Controls)
While Roadnavier screens are pre-configured before shipping, a factory reset or power interruption might clear the CAN-Bus memory. If your climate control touches or steering wheel buttons do not work after installation, simply re-select the correct protocol in the factory settings. The factory settings password is 3368.
