How to connect Roadnavier Aftermarket Rear camera

How to connect Roadnavier Aftermarket Rear camera

The Roadnavier Rear View Camera Connection Cable is explicitly engineered to interface with Universal Android Head Units and Factory Can-Bus Protocols, preserving the OEM 12V Reverse Trigger Signal and HD Video Signal Transmission without cutting your vehicle's original harness.

⚠️ CRITICAL WIRING WARNING (Avoid Battery Drain & Screen Flickering)

Never connect the red power trigger wire (from the RCA video cable) directly to a constant 12V power source! Doing so will cause random battery drain and may burn out the camera's image sensor. Ensure the trigger wire is only energized when the vehicle is in reverse.

✅ CAN-BUS VEHICLE SIMPLIFICATION

If your vehicle is equipped with a Roadnavier CAN-Bus Decoder Box, the reverse signal is transmitted digitally via the CAN protocol. You do not need to run the long red trigger wire to the reverse tail light! Simply connect the camera's RCA to "CAM-VIN" and plug-and-play.

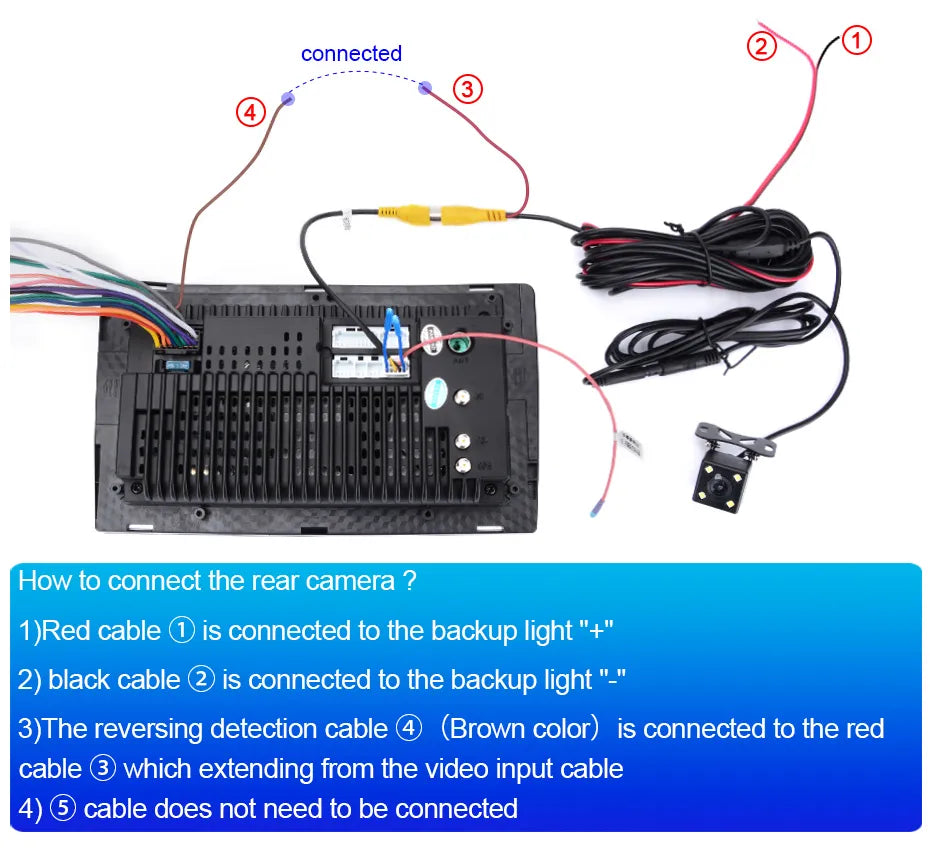

Step-by-Step Back-Up Camera Wiring Guide

1. The Tail Light Trigger Connection (Rear End)

At the back of the car, locate your reverse light bulb harness. Connect the Red Trigger Wire integrated into the RCA cable to the Positive (+12V) wire of the reverse light. This sends a physical 12V analog signal to your Android head unit the instant you shift into Reverse (R).

Backup Camera Rear Trigger Wire Wiring Diagram

2. Rear Camera Power Distribution

The backup camera features a 2-in-1 splitter harness:

  • Red DC Jack: Connects to the red/black power wire. The red lead goes to the positive reverse light feed, and the black lead goes to a reliable metal chassis ground (GND).
  • Yellow RCA Plug: Plugs into the long video extension cable running to the front dashboard.

Rear View Camera Extension Cable Connection

3. Heavy-Duty 4-Pin Aviation / Mini-DIN Pinout

For professional installers running premium heavy-duty cabling, our connectors feature a secure molded thread with precise pin mapping to prevent video noise and ground loops:

4-Pin Backup Camera Connector Pinout Definition

Pin Number Wire Color Signal Definition
Pin 1 Red Power (VDD +12V / +5V)
Pin 2 Black / Shield Ground (GND)
Pin 3 Yellow Video Signal Output (CVBS / AHD)
Pin 4 White / Green Trigger / Ground Loop Mode (Optional)

Frequently Asked Installation Questions

Q: "Why does my Android screen say 'No Signal' when I put the car in reverse?"

A: This is usually caused by one of two issues: Either the BACK-CAR / REVERSE wire on the back of the head unit is not receiving +12V from the reverse trigger wire, or the video format setting (AHD 720P 25fps vs CVBS) in the factory settings menu does not match your camera's native output.

Q: "Where do I connect the red wire at the front of the Android head unit harness?"

A: Connect the front-end red wire to the pink or brown wire labeled "BACK", "REVERSE", or "CAMERA-IN" on the main power harness of the Android unit. This tells the system to instantly override the current screen and show the reverse video feed.

Q: "My European car (BMW/Audi/VW) backup screen flickers or displays static when engine is on. How do I fix it?"

A: Many European vehicles use CAN-Bus pulse width modulation (PWM) to power the light bulbs, which causes voltage drops. To solve this, you need to install a 12V Power Relay Filter / Rectifier between the reverse light positive and the camera power input to supply a clean, constant +12V.
