Upgrading your Infiniti QX60 or JX35 (2013–2021) with our 12.1-inch Tesla-style Android Multimedia System is one of the most rewarding interior transformations you can perform. While the factory dashboard complex looks intimidating, the mechanical installation is actually straightforward. This step-by-step guide walks you through the entire disassembly process, wiring harness integration, and testing protocols.
⚠️ IMPORTANT: Check Your Dashboard Type Before Ordering
Infiniti JX35 and QX60 models feature two different dashboard console molds depending on the trim level and manufacturing year. Please inspect your vehicle’s dash to ensure you receive the correct mounting frame when ordering your Roadnavier 12.1" Head Unit:
Dashboard A (Stitched Leather Top)
• Top dash features stitched leather with visible white seams.
• The silver trim bar above the center air vents has a subtle upward curve / arch.
Dashboard B (Smooth Molded Top)
• Top dash has a smooth, non-stitched surface.
• The silver trim bar above the center air vents is completely straight / flat.
💡 Unsure which one you have? Send us a clear photo of your center console via WhatsApp or live chat after placing your order, and our technical team will double-check for you!
Dashboard Type A (Leather Stitched Top) - Before & After Upgrade
BEFORE: Original console with factory screen and control buttons.

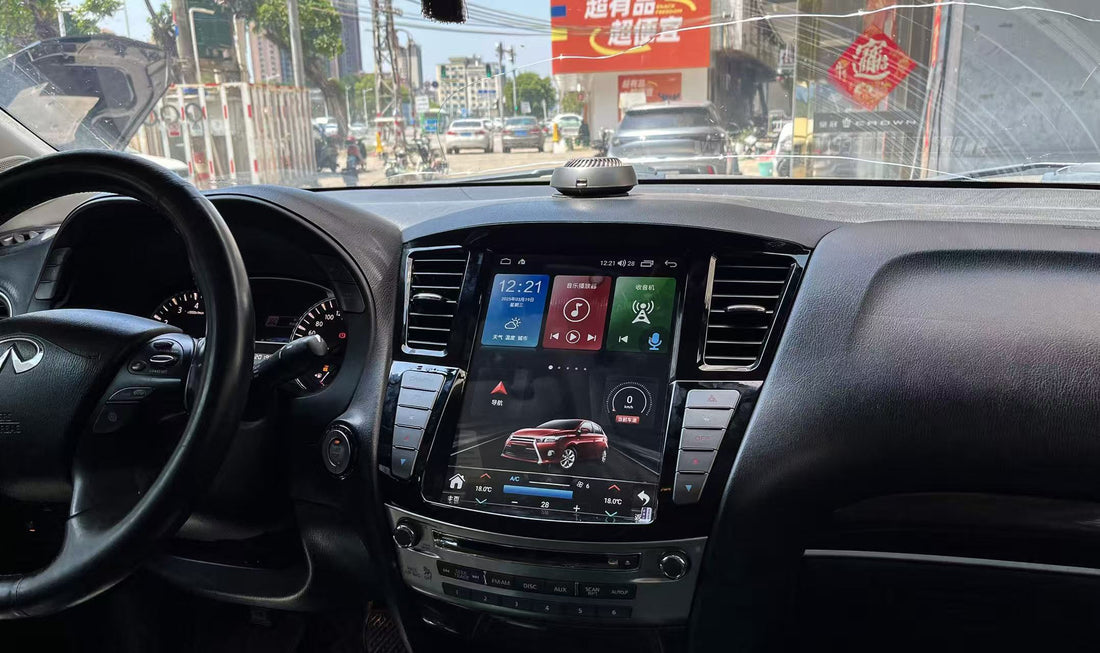

AFTER: High-definition Tesla-style screen integration.
Dashboard Type B (Smooth Molded Top) - Before & After Upgrade
BEFORE: Original console with standard smooth dash.
AFTER: Modern infotainment upgrade for a sleek look.
Seamless Integration: Retain Your Factory Rear Headrest Entertainment
📋 Installation Overview
| Difficulty Level: | Intermediate (100% Plug & Play) |
| Estimated Time: | 60 – 90 Minutes |
| Required Tools: | Plastic Trim Pry Tool, Phillips #2 Screwdriver |
| Compatibility: | 2013–2021 Infiniti QX60 / JX35 (Bose & Non-Bose) |
▶️ Video Tutorial: Step-by-Step Installation
For a full visual walkthrough, check out our complete teardown and installation video below. We guide you through everything from safely removing the factory trim to correctly integrating the wiring harness to ensure your OEM 360-degree camera functions flawlessly.
🛠️ Required Tools
To avoid scratching your leather trim or stripping factory hardware, prepare the following two basic tools before starting:
- Plastic Trim Pry Tool (Plastic Crowbar): Protects soft-touch leather and plastic dash edges during prying.
- Phillips #2 Screwdriver: Used to remove all factory retaining screws securing the radio and screen bracket.
🔧 Step-by-Step Dashboard Disassembly Guide
Step 1: Pry Off Side Trim Cover Panels
Insert your plastic pry tool into the seam along the lower side panels of the center console (left and right of the shifter box). Gently apply lever pressure outward to release the plastic friction clips holding the side leather panels in place.
Step 2: Remove Retaining Screws & CD Slot Panel
Unscrew the visible retaining screws on lower console sides. Use your pry tool to carefully unclip the CD slot bezel and climate control button panel. Once unclipped, reach behind to locate and remove the 2 internal screws securing the factory CD unit chassis.
Step 3: Remove Screws, Upper Vents & Factory Screen
Locate the screws holding the upper air vent assembly (positioned right below the OEM display). Remove the screws, then firmly pull the center air vent panel straight forward. Pull out the factory top display screen and unplug its rear display harness.
Step 4: Disconnect Factory Harnesses & Remove OEM CD Head Unit
Slide the entire OEM CD/Radio player unit out from the dashboard cavity. Unplug all factory wiring harnesses, antenna feeds, and CAN-bus connectors from the back of the OEM unit. Clear the cavity for the custom Roadnavier wiring harness setup.
🔌 Wiring Diagram & Harness Compatibility
Because Infiniti shares a unified OEM infotainment wiring architecture across its platform (including Bose amplifier turn-on signals, CAN-bus protocol decoders, factory 360° AVM camera integration, and rear headrest video outputs), the exact pinout, harness matching, and CAN decoder setups for the JX35/QX60 follow the same engineering standards as the Infiniti G/Q platform.
For full step-by-step schematics, CAN-bus protocol decoder setup codes, and pinout diagrams, please refer to our dedicated guide:
⚠️ Important Pre-Power Check: Always complete wire connections and plug in the CAN-bus box BEFORE turning on the vehicle's ignition. If powered on mid-way, the airbag warning light or climate protocol may fail to initialize properly.
❓ Frequently Asked Questions
Q: Do I need to cut any factory wires during installation?
A: Absolutely not. The Roadnavier Infiniti Upgrade Kit is 100% plug-and-play. All original sockets click directly into custom-engineered adapter harnesses without modifying factory wiring.
Q: What if my steering wheel controls or A/C touch controls don't respond?
A: Navigate to Settings -> Factory Settings (Code: 8888 or 3368) -> Protocol Settings, select your CAN-bus box brand (e.g., Simple Soft / Raise), and choose Infiniti -> QX60/JX35 -> Year Model. Restart the unit to sync protocols.
Q: How do I verify if my vehicle has Dashboard A or Dashboard B?
A: Check the top of your dashboard trim above the screen. Dashboard A features stitched leather with visible white seams and a curved trim bar; Dashboard B features a smooth, non-stitched surface with a flat trim bar.
Q: Lisa Peng, why do you recommend this unit for the Infiniti QX60?
A: Because it’s one of the few Android systems on the market that truly solves the complex Infiniti protocol integration — retaining the OEM 360° camera and rear headrest outputs seamlessly. I’ve personally unboxed, bench-tested, and verified this hardware architecture. To guarantee a flawless installation across different factory trim levels, we include three separate custom harness sets in every box for precise harness matching. You can check product pricing and specifications directly on our store.
