The Ultimate Installation Guide: Volvo XC60 (2009-2017) Android Screen Upgrade

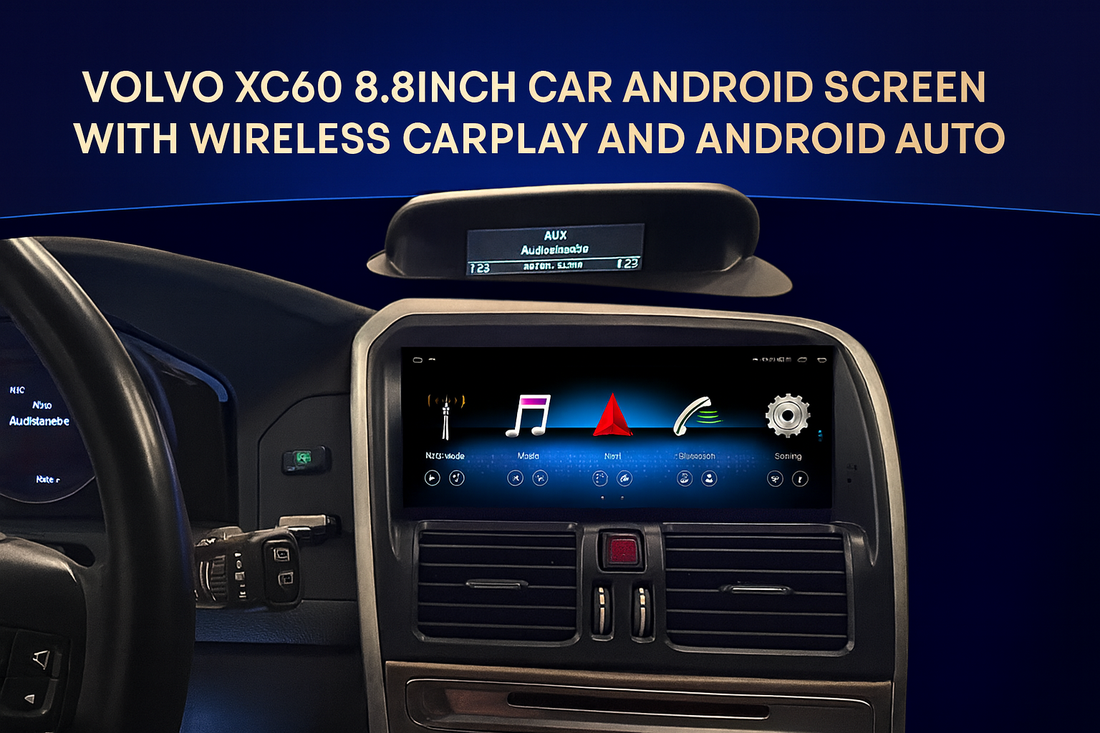

Upgrading the factory infotainment system of your Volvo XC60 to a premium Roadnavier Android head unit is one of the best ways to bring modern connectivity, offline GPS navigation, Apple CarPlay, and Android Auto into your luxury SUV. However, Volvo's unique fiber-optic network architecture and dashboard design require precise steps during installation.
In this comprehensive, step-by-step DIY guide, we break down the installation process for all three major generations of the Volvo XC60: 2009-2010, 2011-2014, and 2015-2017.
Do NOT turn on the car power or insert the key until the entire installation is finished and all wiring harnesses are securely connected! Turning on the ignition mid-installation will trigger a factory SRS airbag error code or cause CANbus decoding errors on the Volvo network. Always complete all wiring connections before testing the system.
1. General Disassembly Process (Applicable to All Models)
Before diving into year-specific wiring wiring layouts, the initial dashboard teardown follows a similar structure across all 2009-2017 Volvo XC60 models:
- Tools Required: Prepare a plastic glue knife (pry tool) and a T20 Torx hexagon socket screwdriver.
- Pry Open the Air Outlet: Use the plastic pry tool to carefully pop open the central air conditioning vent panel. Unplug the dual flash (hazard light) button plug behind it.
- Remove the Factory CD/Disc Player Bezel: Gently pry open the surrounding trim of the factory radio unit.
- Remove the Screws: Use your T20 screwdriver to remove the visible fixing screws behind the central control panel.
- Take Out the Main Unit: Carefully pull out the center panel console fascia and unscrew the factory screen assembly to access the main wiring block behind it.
2. 2009-2010 Volvo XC60 Installation Steps
The early-generation 2009-2010 Volvo XC60 models have a specific factory hardware configuration that requires accurate AUX audio routing to get pristine sound on your new larger display.
Key 2009-2010 Technical Highlights:
- Wiring Connection: Ensure the primary power plug and CANbus adapter cable are well-connected to the back of the machine as shown in the wiring drawing.
- Activating Audio via Factory AUX: Once the system is installed, you must route the audio manually. On your factory central console, press the physical MODE button, turn the knob on the right side to select AUX mode, and press OK. This routes the Android screen's無損 audio output directly through your factory car stereo.
3. 2011-2014 Volvo XC60 Installation Steps
The mid-generation 2011-2014 Volvo XC60 layout requires you to split and adapt the original factory display module bracketry to accommodate the premium high-resolution Roadnavier smart screen.
Key 2011-2014 Technical Highlights:
- Screen Frame & Hardware Bracket Modification: Pry open the original car display housing and remove the touch ribbon/LVDS cables. You must unbolt the metal rear cover of the original screen and fix it onto the newly supplied heavy-duty hardware bracket.
- Factory Vent Component Relocation: Clip the original car air outlet assembly and the hazard button onto the new large-screen dashboard frame securely.
- Audio Interface Setting: Click on the desktop to enter the "NTG Mode" icon. Press the physical "MEDIA" button on your factory panel, select AUX via the original control knob, and press OK to lock in the sound. Then touch the screen to return to the Android system interface.
4. 2015-2017 Volvo XC60 Installation Steps
Late-model 2015-2017 Volvo XC60s utilize an advanced optical fiber loop for infotainment data. Missing this step will result in a completely silent audio system after installation.
Key 2015-2017 Technical Highlights:
CRITICAL: Transfer the Optical Fiber Cable!
You must unplug the original green/orange optical fiber line from the factory main harness block and plug it securely into the corresponding optical slot on the new Roadnavier main wiring harness connector. If this loop is broken, the vehicle's amplifier will not power up, resulting in zero audio.
- System Switching Logic: Just like the 11-14 models, toggle your audio system into NTG Mode, navigate to the stock system's MEDIA panel, select AUX, confirm the connection, and then jump right back into the ultra-responsive Android interface for seamless apps, maps, and music.
Ready to Revolutionize Your Volvo Drive?
Explore Roadnavier's elite lineup of vehicle-specific Android touchscreens and premium digital replacement clusters engineered for absolute OEM integration.
Check out our latest trending products like the R51 Pathfinder LCD Instrument Cluster or our professional flagship solutions like the custom Acura TL Tesla-Style Android Screen.
Shop Premium Automotive Upgrades NowFrequently Asked Questions (FAQ)
Q1: Why is there no sound from my Roadnavier Android screen on my 2016 Volvo XC60?
A: This is almost always caused by forgetting to transfer the original green or orange optical fiber cable. You must unplug the optical fiber line from your original car power plug and transfer it directly into our new harness plug. Additionally, make sure your factory MEDIA menu is set to AUX mode.
Q2: Will I lose my original Volvo menu, reversing camera, or vehicle settings after upgrading?
A: Not at all! The Roadnavier system retains your full factory ecosystem. By tapping the "NTG Mode" icon on the Android desktop, you can view and control all your original factory menus, climate controls, and stock vehicle settings seamlessly.
Q3: Why did my Volvo XC60 throw an SRS Airbag warning light during the DIY install?
A: An SRS light triggers if the vehicle's ignition is turned on while the hazard light plug or climate control panel lines are disconnected. Always ensure you completely power off the vehicle and do not power it back on until all connections are locked down.
Q4: Do the steering wheel controls still work with the new Android upgrade?
A: Yes! The system includes a dedicated plug-and-play CANbus decoding chip that maps your Volvo XC60 volume adjustments, track skipping, and voice commands straight to the Android environment automatically.
Q5: Can I connect my iPhone wirelessly for Apple CarPlay on all 2009-2017 models?
A: Yes, our advanced Roadnavier Android head unit hardware supports wireless Apple CarPlay and Android Auto across all model variations, completely modernized regardless of whether your SUV is a 2010 or a 2017 build.
