This after-sales installation guide is part of the Acura TSX CL9 Upgrade History & Solution Guide hub. Designed to assist DIYers and installers post-purchase, this manual ensures step-by-step technical precision.

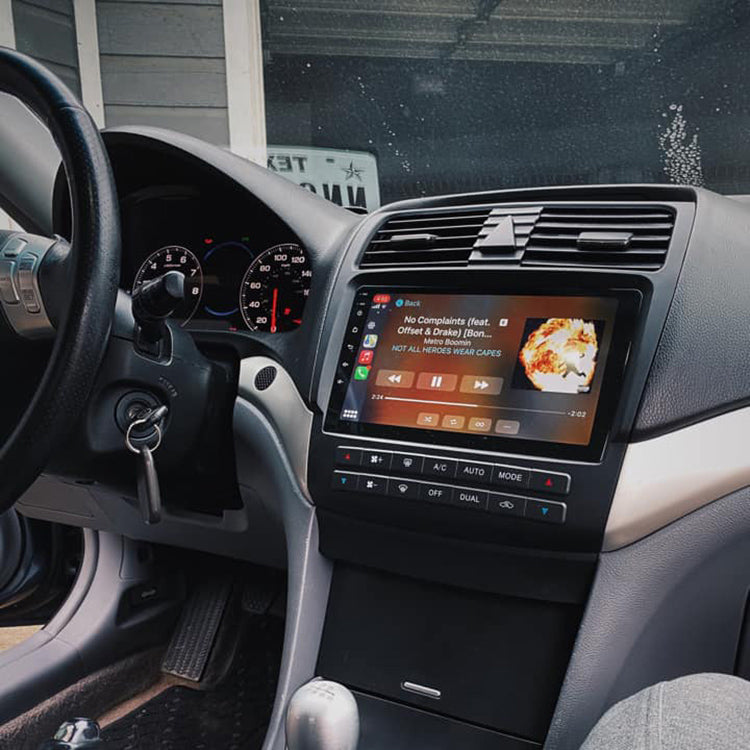

Upgrading the factory head unit in the first-generation Acura TSX (CL9 chassis / Honda Accord Euro / Inspire) presents unique automotive electronics challenges—ranging from dual-zone HVAC multiplex display decoding to active OEM amplifier remote trigger matching. Unlike generic aftermarket units that rely on bulky external decoder boxes, Roadnavier features an On-Board Built-In CAN-Bus Processing Chip integrated directly onto the system motherboard. This step-by-step engineering walkthrough ensures a clean, 100% plug-and-play installation with zero wire cutting and maximum dashboard clearance.
Step 1 — Pre-Installation Workspace & Tool Setup
First-generation Acura TSX interiors utilize tight-tolerance friction clips and soft-touch interior trim coatings. Proper workspace setup prevents cosmetic dash damage and streamlines the electronic retrofitting process.
Required Tools & Hardware
- Trim Removal Kit: Non-marring high-grade nylon pry tools (avoid metal tools to protect TSX dashboard finishes).
- Hand Tools: Magnetic Phillips #2 screwdriver, 8mm and 10mm socket wrenches with 6-inch extensions for lower chassis bracket bolts.
- Interior Protection: Microfiber towels or painter's masking tape to shield the center console and shifter assembly.
- Roadnavier Hardware: Dedicated Acura TSX Head Unit with motherboard-integrated CAN-Bus architecture, ISO main harness, GPS antenna, and dual USB extensions.
Step 2 — Dashboard Disassembly & Integrated Wiring Hookup
OEM Radio & Trim Removal
Gently position your nylon pry tool underneath the top center air vent trim directly above the factory screen/pocket. Pry upward progressively until the spring retention clips disengage. Next, remove the exposed 8mm/10mm retention bolts securing the lower stereo bracket, then carefully pull the OEM head unit assembly outward towards the gear selector.
Ultra-Clean Plug-and-Play Integration (No External CAN-Bus Box)
Because the CAN-Bus protocol processor is hard-wired directly onto Roadnavier's PCB, there is NO external CAN-Bus decoder box hanging on the harness. This completely eliminates loose module rattle and wiring pinch points. Simply connect the ISO harness across three primary vehicle feeds:
Peripherals & Antenna Routing
Route secondary auxiliary I/O leads prior to securing the main chassis into the subframe:
- GPS Antenna: Mount underneath the upper dashboard cowl near the windshield base (ceramic side facing skyward for rapid satellite lock).
- Dual USB Pass-Through: Feed dual high-speed extensions into the lower glove compartment or center storage console.
- Backup Camera Lead: Route the yellow RCA Video-IN harness down the driver-side sill trim panel if installing an aftermarket rear camera.
Step 3 — System Configuration & Protocol Binding
Initial Boot & Electrical Sanity Check
Reconnect the vehicle negative battery terminal and turn the ignition key to position II (ACC). The display will initiate its boot sequence. Cold boot initialization typically completes in 25–35 seconds as system drivers load.
On-Board CAN-Bus Protocol Selection
Even though the CAN-Bus module is physically integrated into the motherboard, profile selection is required during initial setup: Navigate to Settings → Factory Settings (Passcode: 3368) → CANBUS / Protocol Settings. Select Acura / Honda TSX (2004–2008), then save and restart to activate steering wheel controls and climate telemetry synchronization.
Wireless CarPlay & Android Auto Pairing
Enable Bluetooth and Wi-Fi on your mobile device. Pair with the head unit's identifier (Roadnavier-BT). Open the integrated Zlink / TLink application—wireless Apple CarPlay or Android Auto will auto-handshake and launch automatically.
Step 4 — Rearview Camera Signal & Reverse Trigger Setup
Connect the camera video RCA lead to the dedicated BACK-CAM / REVERSE-IN input port. Utilizing real-time built-in CAN-Bus reverse gear sensing, the system immediately switches to the rear camera feed with dynamic trajectory guidelines upon shifting into Reverse.
Step 5 — Audio Troubleshooting: Fixing "No Sound" on Premium Factory Amp Systems
If the system powers on normally, responds to touch, and runs navigation, but yields absolute audio silence from the speakers, the cause is an unpowered factory amplifier remote activation circuit.
Upgrade Your First-Gen TSX Cockpit
Roadnavier Acura TSX Android Head Unit
Transform your dashboard with on-board motherboard CAN-Bus architecture, IPS high-definition display, seamless wireless smartphone integration, and complete OEM vehicle system retention.
Frequently Asked Questions
Is an external CAN-Bus decoder box required with this kit? ▼
Do I need to cut or modify any OEM factory wiring? ▼
Will my OEM steering wheel control buttons remain functional? ▼
How does the system handle the upper factory dual-zone HVAC climate display? ▼
Are Wireless Apple CarPlay and Android Auto built-in? ▼
