Upgrading the factory infotainment system in a Citroën DS5 is not simply a matter of replacing the screen. Before installing an Android head unit, DS5 owners often need to confirm several important questions: Will the Denon amplifier still work? Can the original vehicle settings and controls be retained? Will navigation information still appear on the factory dashboard or HUD?
This guide explains how the Roadnavier Android upgrade integrates with the original Citroën DS5 system, what factory functions are retained, and what to know before installation.
If you have already confirmed compatibility and are looking for the complete upgrade kit, see: Citroën DS5 2010–2018 Android Screen with Wireless CarPlay & Android Auto →
1. Does the Android Screen Work with the Factory Denon Sound System?
Yes. The Roadnavier Citroën DS5 system supports vehicles equipped with the factory Denon sound system.
This is important because the Denon amplifier requires the correct CANbus communication to operate properly after the Android system is installed. The Roadnavier DS5 configuration uses the appropriate CANbus protocol so the factory Denon amplifier can continue working with the upgraded system.
Make sure your vehicle configuration is confirmed before shipment so the correct wiring and CANbus configuration can be supplied.
2. Which Factory Citroën DS5 Functions Are Retained?
The Android system is designed to add modern infotainment functions while retaining important parts of the original DS5 vehicle system.
-
Factory Vehicle Settings
Supported original vehicle settings, including functions such as interior-lighting settings, remain accessible through the upgraded system. -
Original Dashboard & Head-Up Display
Navigation information can continue to be displayed through the original dashboard or Head-Up Display (HUD). -
Original Center-Console Controls
The original scroll wheel and buttons located below the gear selector remain usable with the Android system. -
Factory Denon Audio System
Vehicles equipped with the original Denon sound system are supported with the correct CANbus configuration.
Adjustment of the original analog clock time is currently not supported through the Android system.
3. What Does the Android Upgrade Add?
Once installed, the new system adds modern smartphone and Android functions without requiring you to give up the supported factory functions listed above.
- Wireless Apple CarPlay
- Wireless Android Auto
- Google Maps and Waze
- Spotify and other supported Android apps
- Touchscreen Android interface
For available hardware configurations, current specifications and ordering options, see the Citroën DS5 Android Screen product page .

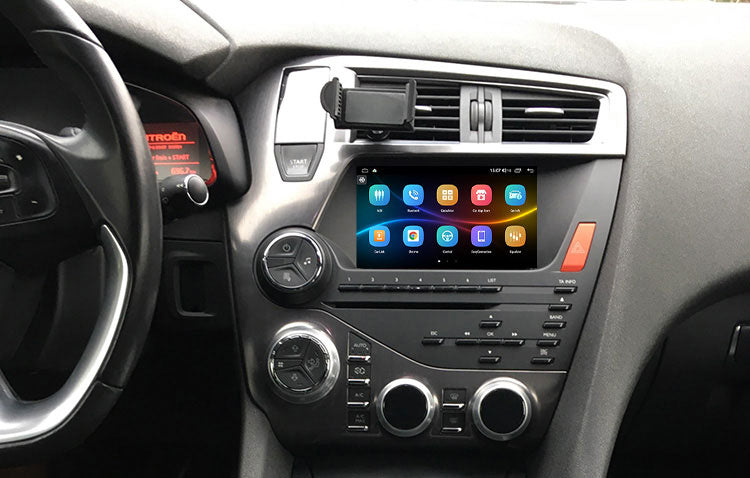

4. Citroën DS5 Android Screen Installation
The system uses a vehicle-specific wiring harness and CANbus decoder to integrate the Android screen with the original DS5 electronics.
Before You Start
- Prepare a Phillips screwdriver set and plastic trim-removal tools.
- Disconnect the negative battery terminal before beginning the installation.
- Check all connectors before reinstalling the dashboard trim.
Step 1 — Remove the Original Trim Panels
Carefully use a plastic trim-removal tool to release the dashboard panels surrounding the factory multimedia system.
Step 2 — Access the Factory Connections
Remove the necessary factory components to access the original wiring connectors. Take note of the original connector locations before disconnecting them.
Step 3 — Connect the Roadnavier Wiring Harness and CANbus
Connect the vehicle-specific Roadnavier harness between the Android system and the original vehicle connectors. Make sure the CANbus decoder is securely connected.
Step 4 — Select the Correct Vehicle CANbus Configuration
After powering on the Android system, confirm that the correct Citroën DS5 vehicle configuration is selected in the factory/CANbus settings.
Step 5 — Test Factory Functions Before Reassembly
Before reinstalling all dashboard panels, test the Android system and the factory functions that apply to your vehicle.
Check the original controls, audio operation, vehicle information and other retained functions before completing the installation.
5. Citroën DS5 with Denon: What Should You Check Before Ordering?
If your DS5 is equipped with the factory Denon audio system, this should be identified before shipment so the correct configuration can be prepared.
Not Sure About Your Factory Configuration?
Send us the following before shipment:
- Your Citroën DS5 model year
- A clear photo of the original dashboard
- A photo showing the original multimedia system
- Confirmation of whether the vehicle has the factory Denon sound system
We can use this information to confirm the vehicle configuration before the unit is shipped.
6. Frequently Asked Questions
Will the factory Denon amplifier still work?
Yes. The Roadnavier DS5 system supports the factory Denon sound system using the appropriate CANbus configuration.
Will I lose the original DS5 vehicle settings?
Supported original vehicle settings remain accessible through the upgraded system. However, adjustment of the original analog clock time is currently not supported.
Will the original center-console controller still work?
Yes. The original scroll wheel and buttons below the gear selector remain supported.
Will navigation information still appear on the original dashboard or HUD?
The system supports navigation information display through the original dashboard or Head-Up Display.
Do I need to identify the CANbus decoder myself?
No. Confirm your vehicle configuration when ordering and Roadnavier will prepare the appropriate wiring and CANbus configuration for the DS5. If you are unsure, send us photos of the original dashboard and multimedia system before shipment.
