Roadnavier® Technical Service Bulletin
Acura MDX (2007–2013) Android Screen Troubleshooting & Diagnostics Guide
If you encounter audio routing, CANbus steering response, HFL battery drain, or climate control status issues after upgrading your Acura MDX YD2, follow this official technician-approved diagnostic guide to optimize your Roadnavier® Android system.

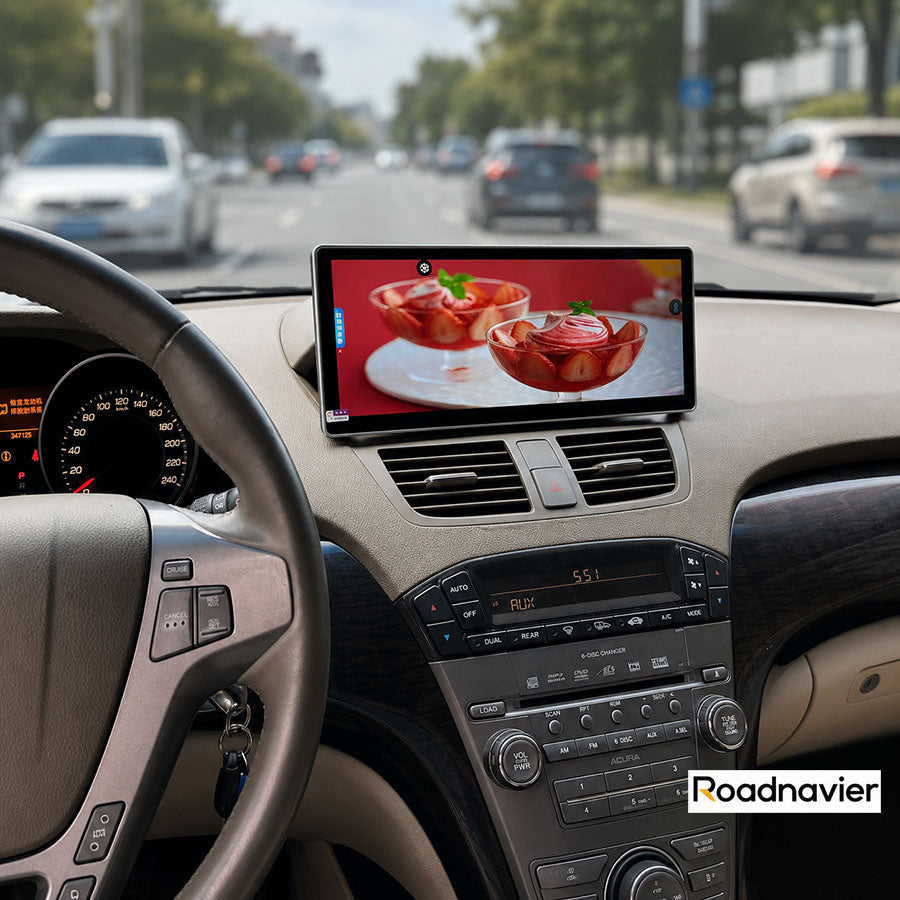

12.3" Android 14 Infotainment System for Acura MDX (2007–2013)
Transform your Acura MDX cockpit with Wireless Apple CarPlay, Wireless Android Auto, built-in 32-band DSP, and direct ELS Surround Sound retention.
- Platform: Qualcomm Octa-Core / Android 14 OS
- Display: 12.3-inch HD IPS Anti-Glare Touchscreen
- Audio Link: Direct OEM AUX routing via factory ELS system
🛠️ Diagnostic Protocols & Technical Fixes
Most post-install glitches are easily solved by verifying harness seating, toggling the OEM radio source, or selecting correct CANbus protocol profiles:
❌ Issue 1: No Audio Output / ELS Amp Silent
Solution: Switch your Acura central CD/Radio unit to AUX Mode. Verify the black CANbus decoder box is securely latched to send the turn-on signal to the OEM ELS Surround Sound amplifier.
❌ Issue 2: Climate Info Not Displaying
Solution: Confirm CANbus sub-harness connection. Open Factory Settings (PIN 3368) → Protocol Settings, and select Simple Soft / Raise → Acura → MDX → 2007–2013, then reboot.
❌ Issue 3: Steering Wheel Buttons Inactive
Solution: Open the SWC / Steering Key Study app on the Android menu to re-bind volume and track buttons, or inspect the 16-pin CANbus harness seating.
❌ Issue 4: Camera Signal Error / Black Screen
Solution: Verify RCA input is in CAM-IN (not AUX-IN). If using the factory rear view camera, read our guide to retain factory backup camera integration for step-down transformer setups.
🔋 Permanent Fix for Acura MDX Battery Drain (OEM HFL Module)
If your MDX experiences overnight battery discharge, the culprit is almost always the failing factory HandsFreeLink (HFL) Bluetooth module located behind the glovebox. Disconnecting the HFL green connector stops the parasitic draw permanently. Your new Roadnavier Android unit provides built-in Bluetooth 5.0 and Wireless CarPlay, making the old module redundant.
💡 Need Real-Time Technician Assistance? Our engineering team provides pre-shipment wiring verification and live installation support on WhatsApp.
