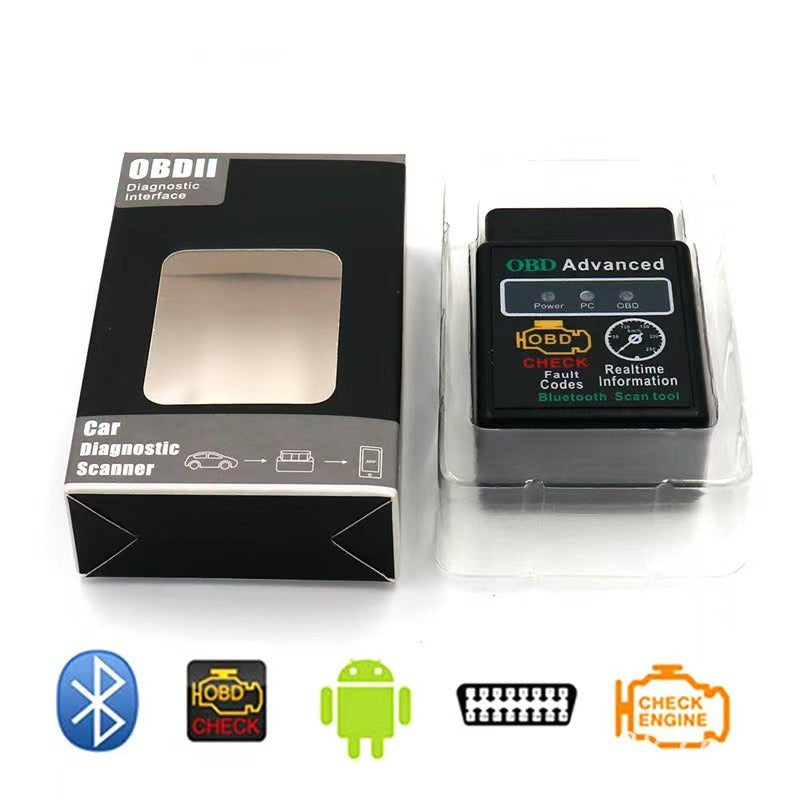

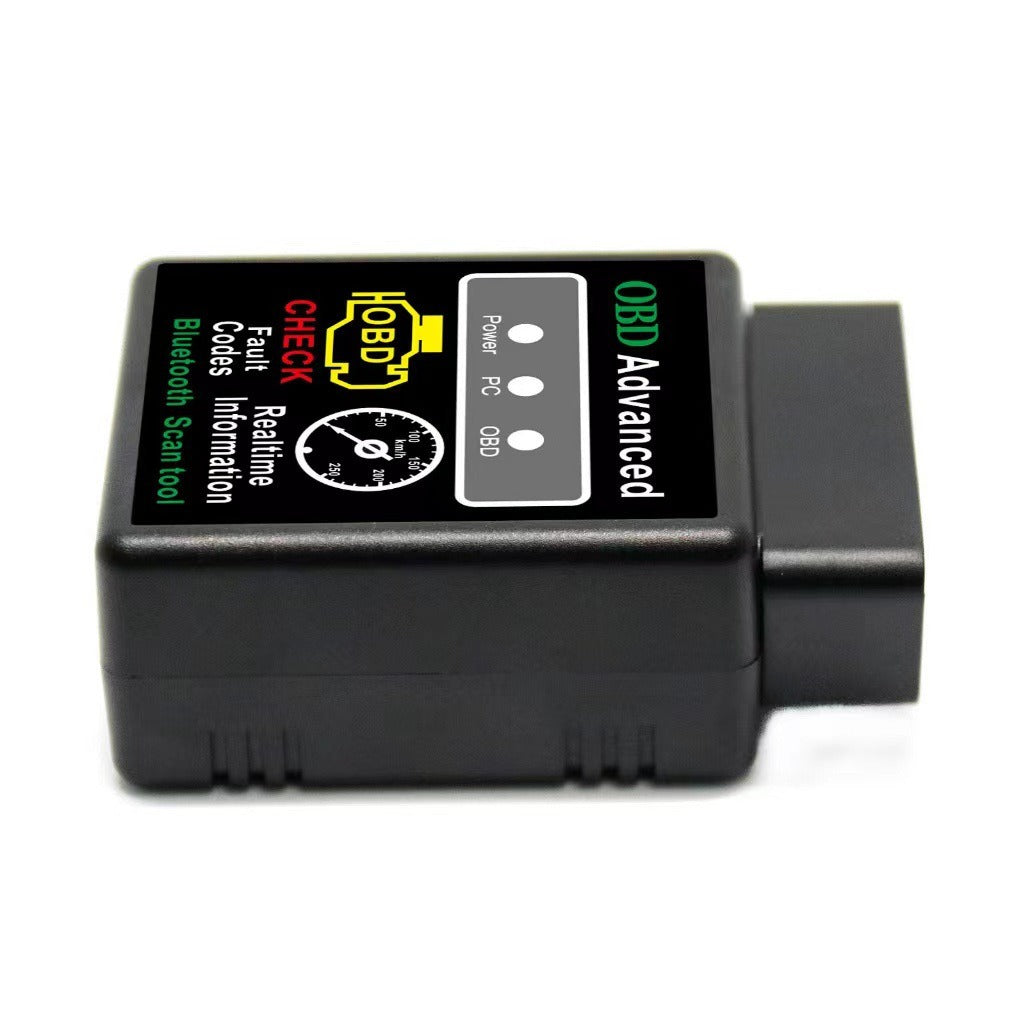

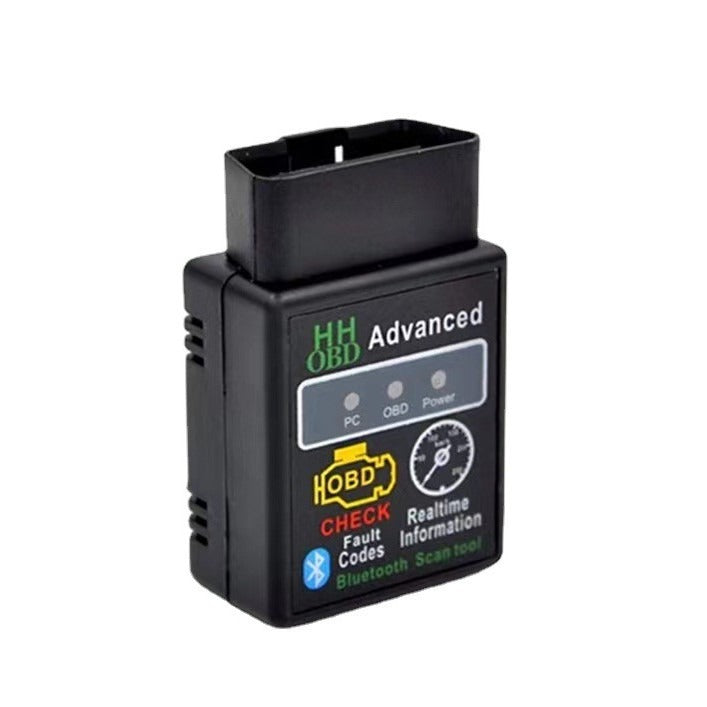

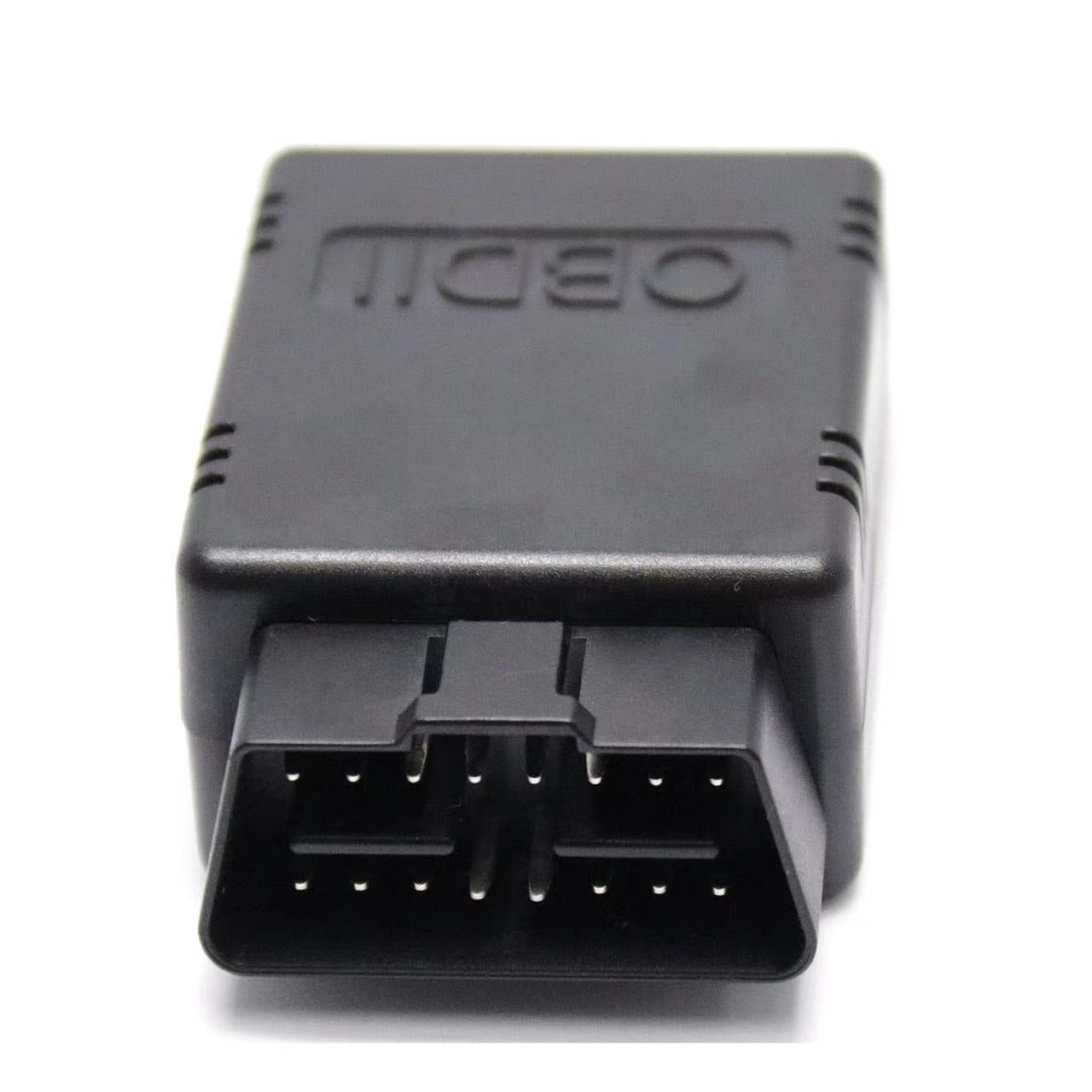

Bluetooth OBD2 Scanner — For Android Head Units, Torque Pro Compatible

Car Monitor Bluetooth OBD2 Scanner Torque Pro for Navitech Brand Store Stereo Navigation Autoradio Head Unit

Product features.

1. small size, highest chip integration, with independent appearance patents, utility model patents and software copyrights. Passed CE, FCC, and

RoHS certification.

2. The software can perform the following operations.

Read error diagnostic codes - generic and manufacturer-specific and display their meaning (database with over 3000 generic code definitions)

Clear the error codes and turn off the MIL ("Check Engine" indicator)

Displays current sensor data, including.

Engine speed per minute (RPM)

Calculated load value

Coolant temperature

Fuel system status

Vehicle speed

Short-term fuel condition

Long-term fuel condition

Intake manifold pressure

Injection advance time

Intake air temperature

Air Flow Rate

Absolute throttle position

Oxygen probe voltage associated with short-term fuel status

Fuel system status

Fuel pressure

There are many other data available for fuel consumption monitoring ...

Specifications:

Product parameters.

Communication mode: Bluetooth 4.0

Main control chip: MM32L073

Software platform: Support Android /Windows/IOS

Working voltage: 12V

Working current: 32mA

Working temperature: 40℃~80℃

Working humidity: less than 60%

Product size: 57mm* .2mm*24.2mm

Package Included:

1x Auto Scanner

Notes:

Protocol Support.

OBDII supported protocols.

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2 (5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software platforms.

1. Compatible software

Window versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.

Android
