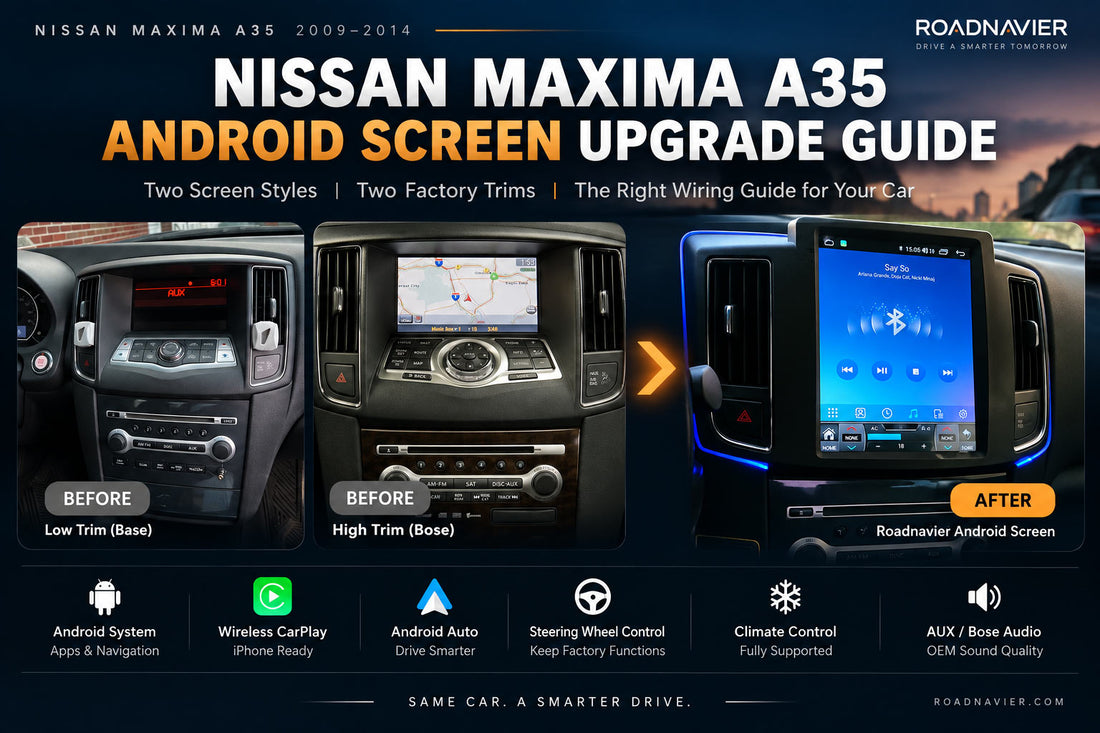

Nissan Maxima A35 Android screen upgrade — identify the screen style and factory configuration before installation.
Nissan Maxima A35 Android Screen Guide: Choose the Right Screen & Wiring
The Nissan Maxima A35 has two Android screen styles and two main factory configurations. Once these are identified, the correct installation path is straightforward.
Roadnavier offers two screen styles for the Nissan Maxima A35: a 7-inch Original-Style screen and a vertical Tesla-Style screen. The vehicle itself is then divided into Low Trim and High Trim. Low Trim retains the original head unit and climate-control panel, with Android audio routed through AUX. High Trim removes the original head unit and climate-control panel, and requires the correct Type 1, Type 2 or Type 3 wiring harness.
Choose Your Android Screen Style
Screen style and factory configuration are two separate decisions. First choose the appearance you prefer; then identify the original vehicle configuration to determine the correct wiring.
7" Original-Style Screen
Designed for owners who prefer an OEM-style dashboard appearance while adding Android, CarPlay and modern infotainment functions.
View 7" Original-Style Screen →Vertical Tesla-Style Screen
A larger vertical display for owners who prefer a more modern center-screen appearance.
View Tesla-Style Screen →Identify Your Factory Configuration: Low Trim or High Trim
This is the most important installation distinction. The Low Trim and High Trim systems use different installation logic.
Factory Head Unit Is Retained
Factory Head Unit Is Removed
Low Trim Wiring Guides
Both Low Trim screen styles retain the original factory head unit and the original climate-control button panel. Android audio is routed through AUX.
Original-Style Wiring Guide
Wiring instructions for the Low Trim vehicle with the 7-inch Original-Style Android screen.
Open 7" Wiring Guide →Vertical Screen Wiring Guide
Wiring instructions for the Low Trim vehicle with the vertical Tesla-style Android screen, including the additional protocol-wire check.
Open Tesla-Style Wiring Guide →High Trim: Identify Type 1, Type 2 or Type 3
High Trim vehicles use three different factory head unit configurations. Each one requires its corresponding Roadnavier wiring harness.
Factory Head Unit Type 1
Use the Type 1 Roadnavier harness and Type 1 installation guide.
Open Type 1 Wiring Guide →Factory Head Unit Type 2
Use the Type 2 Roadnavier harness and Type 2 installation guide.
Open Type 2 Wiring Guide →Factory Head Unit Type 3
Use the Type 3 Roadnavier harness and Type 3 installation guide.
Open Type 3 Wiring Guide →You do not need to guess. Send Roadnavier clear photos of your original dashboard and factory head unit. We can verify whether your Maxima uses Type 1, Type 2 or Type 3 and confirm the correct harness before shipment.
Find Your Nissan Maxima A35 Installation Path
Common Installation Checks
If a function does not work after installation, start with the physical connection related to that function before changing settings.
On Low Trim, check the AUX audio connection first. Confirm all required audio connectors are fully seated.
Check the CANBUS connection and confirm the correct vehicle protocol is selected.
Check the climate-control harness and CANBUS connection.
On the Low Trim Tesla-style installation, check the green CAN protocol wire and decoder connection.
Check the camera video input and reverse-trigger connection where required by the installation.
Check the main power harness, connector lock and relevant fuse before continuing troubleshooting.
Nissan Maxima A35 Installation Questions
What is the difference between Low Trim and High Trim installation?
Low Trim keeps the original factory head unit and original climate-control button panel. Android audio is routed through AUX. High Trim removes the original factory head unit and climate panel, and the replacement harness must match Type 1, Type 2 or Type 3.
Can both Low Trim versions use the 7-inch and vertical screen?
Yes. The 7-inch Original-Style and vertical Tesla-Style are two different Android screen designs. For Low Trim installation, the original head unit and original climate-control button panel remain in the vehicle.
Why does High Trim have Type 1, Type 2 and Type 3?
High Trim Nissan Maxima A35 vehicles can use three different factory head unit configurations. Their rear connectors and required wiring harnesses are different, so the original head unit type must be identified before the correct harness is supplied.
How do I know whether my High Trim Maxima is Type 1, Type 2 or Type 3?
Compare the original factory head unit and connector layout with the Roadnavier Type 1, Type 2 and Type 3 references. If you are unsure, send us clear photos and we can confirm the correct type before shipment.
Why does the Low Trim Android screen use AUX for audio?
The original factory head unit remains part of the Low Trim audio system. Android audio is therefore passed through the factory AUX input to the original vehicle audio system.
What should I do if the Tesla-style screen shows no CANBUS data?
On the Low Trim Tesla-style installation, first check the green CAN protocol wire and its connection to the decoder. Confirm the connector is fully seated before changing CANBUS software settings.
You Don't Need to Identify Every Connector Yourself
Send us clear photos of your original dashboard and factory head unit. Roadnavier can confirm the factory configuration and correct wiring harness before shipment.
Check My Maxima Configuration →Choose the Screen Style You Prefer
Roadnavier will help match the installation configuration to your original Nissan Maxima A35 system.
