Digital Instrument Cluster for 2015–2019 Land Rover Discovery Sport L550
Digital Instrument Cluster for 2015–2019 Land Rover Discovery Sport L550
Couldn't load pickup availability
Premium Aftermarket Automotive Electronics

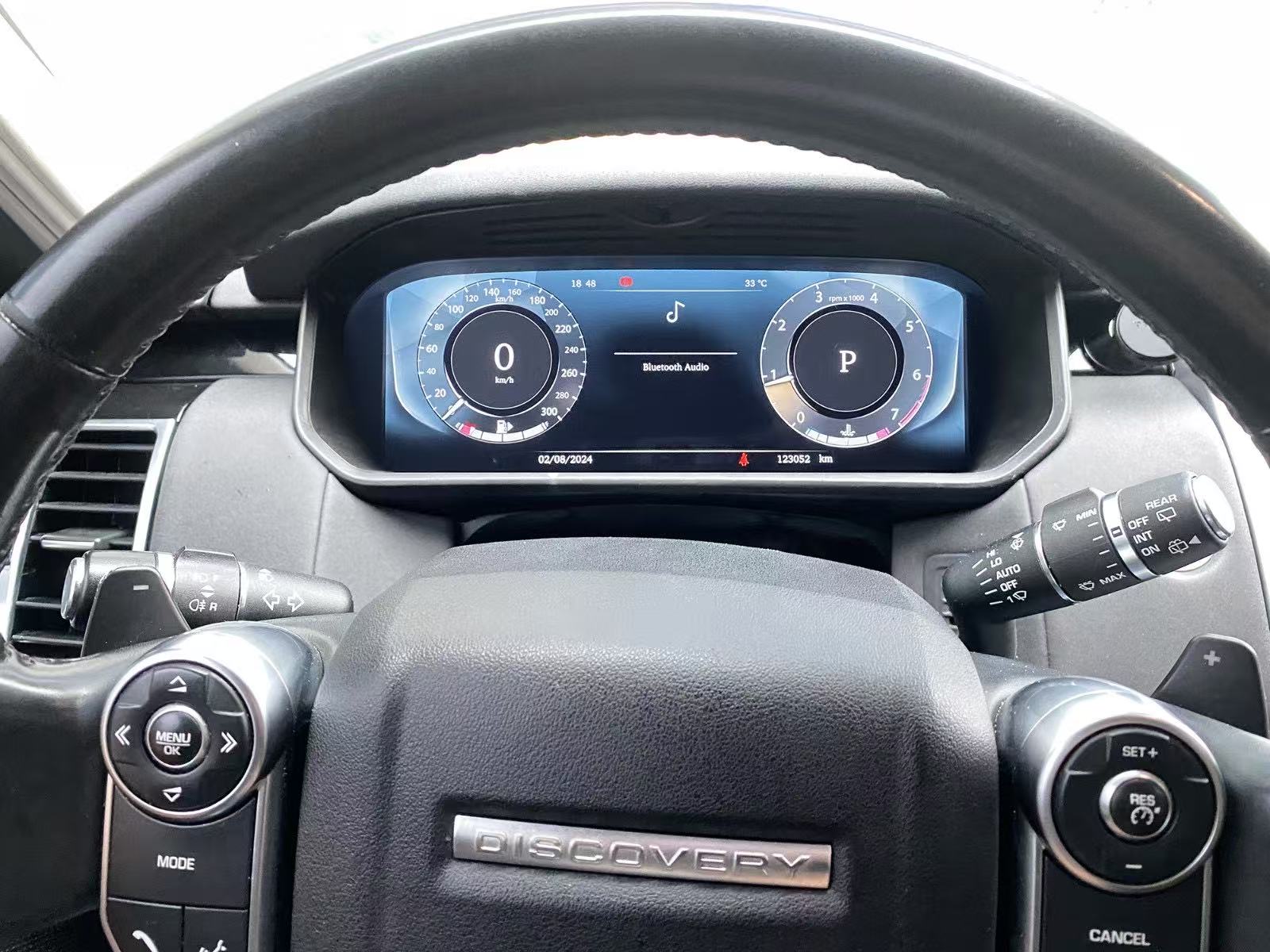

Roadnavier 12.3-Inch Digital Instrument Cluster for 2015–2019 Land Rover Discovery Sport L550 — Virtual Cockpit, 1920×720 QLED, Wireless CarPlay, Plug & Play
The Roadnavier RN-LRDS-1230 is a direct-replacement 12.3-inch QLED digital instrument cluster engineered specifically for the Land Rover Discovery Sport L550 (2015–2019). It swaps your aging analog gauges for a fully digital virtual cockpit — with three selectable drive themes, wireless CarPlay mirroring, and a sub-2.5-second boot time. No coding required. No wire cutting. All factory gauge data retained.
Your Discovery Sport's Dash Is a Decade Behind
✕ Factory Analog Cluster
- Dated needle gauges — no customization
- Blank screen & gauge failures (known L550 issue)
- No tire pressure readout on cluster
- No navigation or phone data on dash
- No off-road or Sport display mode
- OEM replacement cost: $800–$1,500+ at dealer
✓ Roadnavier RN-LRDS-1230
- Full 12.3" QLED virtual cockpit — crisp in all light
- Linux OS: rock-stable, no freezes or blank-outs
- Live TPMS, oil temp, fuel consumption on screen
- Wireless CarPlay — maps right in your eyeline
- Classic / Sport / Off-Road themes on demand
- Fraction of dealer cost, true plug-and-play
Three Themes. One Cluster. Your Choice Every Drive.
Switch between display personalities without touching a wire — themes are selectable from the steering wheel or touchscreen.
Classic
Clean white-on-black layout that mirrors OEM style — familiar yet sharper and fully digital.
Sport
Red accent gauges, large tachometer prominence, g-force indicator — built for spirited driving.
Off-Road
Compass, pitch & roll, terrain angle, and 4WD mode front and center — everything the trail demands.
Core Specifications
| Screen Size | 12.3-inch QLED IPS Multi-Touch |
| Resolution | 1920 × 720 px (HD) |
| Operating System | Linux (high-stability, no Android bloat) |
| Boot Time | Under 2.5 seconds (cold start) |
| Wireless CarPlay | Yes — phone maps & calls on the cluster display |
| Android Auto | Yes — wireless |
| Speedometer | Digital + analog arc overlay (theme-dependent) |
| Tachometer (RPM) | Fully retained, digital rendering |
| Fuel Gauge | Digital bar + percentage readout |
| Water Temperature | Real-time digital display |
| Oil Pressure / Temp | Real-time digital display |
| Tire Pressure (TPMS) | Per-wheel readout (requires OEM or aftermarket TPMS) |
| Fuel Consumption | Instant + average MPG / L/100km |
| 4WD Mode Display | Yes — active drive mode shown on screen |
| Odometer / Trip | Total mileage & trip A/B retained |
| Warning Indicators | Door open, seatbelt, all OEM warning lights |
| Unit Selection | Miles / Kilometers (switchable) |
| Steering Wheel Controls | Fully retained via OEM CAN-bus |
| Language Support | EN / DE / FR / ES / IT / RU / AR / PT / TR |
| Coding Required | None — plug and play, zero dealer visits |
Supported display languages:
Everything Your Dash Should Have Always Shown
Speed
Digital readout + analog arc, mph or km/h
RPM
Tachometer arc, redline indicator
Fuel Level
Bar graph + range remaining
Water Temp
Real-time engine coolant °C / °F
Oil Pressure
Live pressure reading, low-pressure alert
Tire Pressure
All 4 wheels, per-wheel PSI / bar
4WD Mode
Active terrain mode label on screen
Fuel Economy
Instant + rolling average MPG
CarPlay Mirror
Google Maps / Waze in your eyeline
Vehicle Fitment Guide
| Year | Model | Trim / Notes | Fitment |
|---|---|---|---|
| 2015 | Land Rover Discovery Sport (L550) | Pure, SE, SE Tech, HSE, HSE Luxury | Direct Plug-in |
| 2016 | Land Rover Discovery Sport (L550) | Pure, SE, SE Tech, HSE, HSE Luxury | Direct Plug-in |
| 2017 | Land Rover Discovery Sport (L550) | Pure, SE, SE Tech, HSE, HSE Luxury | Direct Plug-in |
| 2018 | Land Rover Discovery Sport (L550) | Pure, SE, HSE, HSE Luxury, Landmark | Direct Plug-in |
| 2019 | Land Rover Discovery Sport (L550) | S, SE, SE R-Dynamic, HSE, HSE R-Dynamic | Direct Plug-in |
| 2020+ | Land Rover Discovery Sport (L550 facelift) | Updated electrical architecture | Verify before purchase |
| All | Range Rover Evoque (L538) | Different dash / connector layout | Not Compatible |
Unsure about your trim? Send your VIN to info@roadnavier.com or WhatsApp and we'll confirm fitment before you order.
Installation Overview
Estimated time: 60–90 minutes. Difficulty: Beginner–Intermediate. No coding, no dealer visit, no permanent modification to your Discovery Sport.
Disconnect the Battery & Remove the Factory Cluster
Disconnect the negative battery terminal. Using the included trim removal tools, remove the instrument binnacle surround, then slide out the factory cluster. Disconnect the OEM multi-pin connector — no cutting required.
Connect the Plug-and-Play Harness
Plug the included OEM-matched connector harness into your Discovery Sport's factory socket. The CAN-bus adapter reads all original gauge signals — speed, RPM, fuel, temp, warnings — with no coding or calibration needed.
Seat the Roadnavier Cluster & Reconnect Battery
Slide the RN-LRDS-1230 into the factory binnacle housing and secure with OEM clips. Reconnect the battery. The cluster boots in under 2.5 seconds — all gauges live and accurate on first start.
Select Your Theme & Pair CarPlay
Use the steering wheel controls to cycle through Classic, Sport, and Off-Road themes. Open your phone's Bluetooth settings, connect once, and wireless CarPlay or Android Auto will launch automatically on every subsequent start.
Step-by-step install video: youtube.com/@roadnavier
Why Discovery Sport Owners Choose Roadnavier
1-Year Warranty
Full hardware warranty. Manufacturing defect covered, no questions.
30-Day Returns
Doesn't fit your L550? Send it back for a full refund.
Fast Global Shipping
US & EU: 7–12 business days. DHL / FedEx tracked.
No Coding Needed
Zero dealer visit. Plug in and drive — that's it.
Real Install Videos
Actual hands-on Discovery Sport installs on YouTube — not CGI renders.
Live Support
WhatsApp & email — reach a real person, not a chatbot.
Frequently Asked Questions
- Does this digital cluster work with my 2017 Land Rover Discovery Sport HSE — does it need any coding?
- Yes, the Roadnavier RN-LRDS-1230 is designed for all 2015–2019 Discovery Sport L550 variants including Pure, SE, HSE, and HSE Luxury. It uses a plug-and-play CAN-bus harness that reads all OEM signals without any dealer coding, software flashing, or programming adapters.
- Will the mileage (odometer) be correct on the new digital cluster?
- Yes. The cluster reads odometer data directly from your vehicle's CAN-bus network, which stores mileage in the BCM (Body Control Module) — not in the cluster itself. Your total mileage transfers automatically with no recalibration needed.
- Does it show tire pressure for all four wheels, or just a warning light?
- If your Discovery Sport is equipped with OEM TPMS sensors (all 2015–2019 L550 models sold in the US and EU are), the Roadnavier cluster reads the per-wheel pressure data from the CAN-bus and displays individual PSI or bar values for all four tires — far more useful than a generic warning light.
- How does the wireless CarPlay work on an instrument cluster?
- The cluster has a built-in Bluetooth chip. Pair your iPhone once; from that point, CarPlay connects automatically when you start the car. Your navigation app (Google Maps, Apple Maps, Waze) appears in a dedicated zone on the cluster screen, so directions are directly in your line of sight without looking away from the road.
- What's in the box — do I need to buy any extra wiring harness?
- The box includes the 12.3-inch digital cluster unit, the OEM-matched plug-and-play wiring harness for the Discovery Sport L550, CAN-bus adapter module, trim removal tools, and a printed installation guide. Everything needed for a complete install is included — no separate harness purchase required.
- Will all my original warning lights and safety indicators still work?
- All OEM warning indicators are fully retained — check engine light, ABS, airbag, low fuel, door-ajar, seatbelt reminder, and all other factory warnings display exactly as they did on the original cluster. The unit reads all signals from the CAN-bus so nothing is lost.
- What is the warranty and return policy, and how long does it ship to the US or UK?
- The RN-LRDS-1230 comes with a 1-year hardware warranty against manufacturing defects and a 30-day return policy. US and Canada: 7–10 business days via FedEx or DHL with full tracking. UK and EU: 8–12 business days. Tracking is provided within 24–48 hours of dispatch.
Give Your Discovery Sport the Dashboard It Should Have Come With
12.3 inches of sharp QLED glass. Three drive themes. CarPlay in your eyeline. No coding. No dealer. Just plug in and go.
